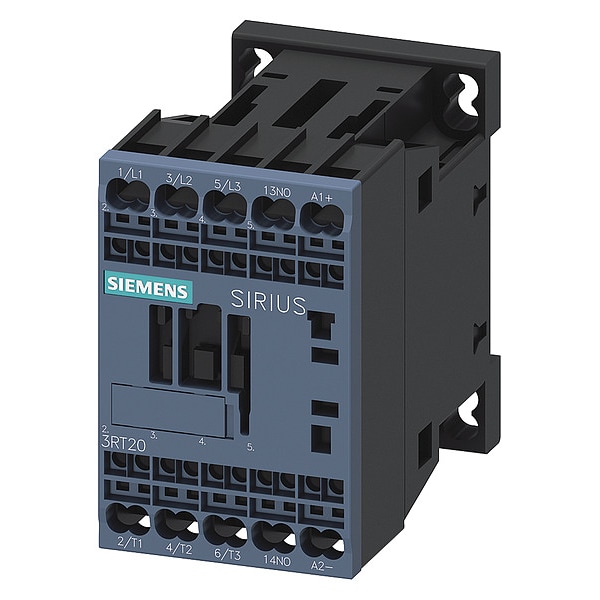

Siemens IEC PowerContactor, Non-Reversing, 24VDC 3RT20172BB41 - main

IEC PowerContactor, Non-Reversing, 24VDC

  • Mfr # 3RT20172BB41

  • Zoro # G8360887

product price: $126.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
1/2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20172BB41
Zoro #
G8360887
UPC #
662643911572
Country of Origin
Germany

Dimensions

Height
70 mm
Width
45 mm
Depth
73 mm
Overall Width
1.97 in
Overall Depth
2.92 in
Mounting Hole Diameter
0.2 in
Frame Size
S00
Overall Height
3.08 in
Mounting Hole Distance - Width
1.38 in
Mounting Hole Distance - Height
1.97 in

Details

Full Load Amps-Inductive
12 A
Item
IEC Power Contactor
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
1/2 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
7 1/2 hp
Aux. Contact Configuration
1NO
Auxiliary Contact Form
1NO
Series
SIRIUS 3RT20
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S00
Rated operating current Ie with AC-3, 400 V
12 ampere
Rated current [In] for the power loss specification
12 ampere
suitable for series installation
Yes
Power loss, static, current-independent [Pls]
4 watt
Rated operating power with AC-3, 400 V
6 kilowatt
Number of making contacts and main contacts
3
Power loss per pole, current-dependent [PlIp]
0.5 watt
min. rated control voltage Us with DC
24 volt
rated operational power AC-1 at 400 V
13 kilowatt
Connection type
Spring pulley connection
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 120V AC
1/2 hp
Reversing Capability
Non-Reversing
Mounting Style
DIN Rail, Surface
Number of Auxillary Contacts
1
Coil Voltage
24V DC
Full Load Current - Inductive
12 A
Horsepower @ Three Phase - 480V AC
7 1/2 hp
Horsepower @ Three Phase - 240V AC
3 hp
Maximum Voltage Rating
690V AC
Mounting Postion
Vertical
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 600V AC
10 hp
Contactor Style
IEC
Horsepower @ Single Phase - 240V AC
2 hp
Terminal Connection Type
Spring Loaded Terminals
Phase
Three
Full Load Current - Resistive
22 A
Response Time
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
30,000,000
Maximum Operating Temperature
140 Degrees F
Embedded Surge Suppressor
No
IP Rating
IP20

Description

IEC Power Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
