  13. IEC PowerContactor, Non-Reversing, 24VDC

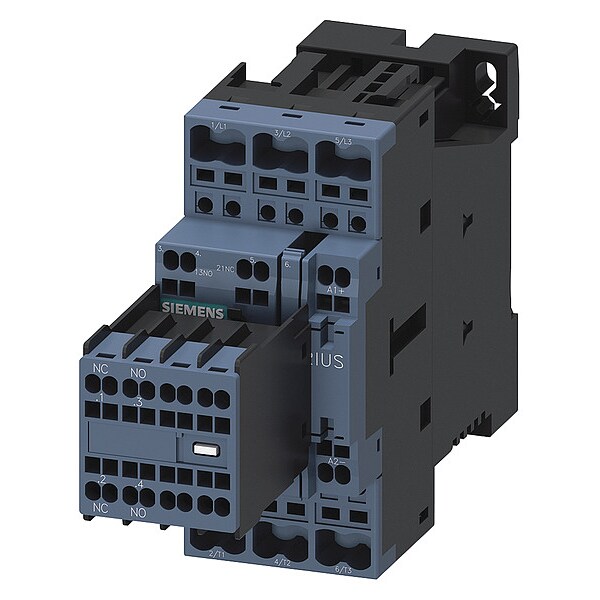

Siemens IEC PowerContactor, Non-Reversing, 24VDC 3RT20262BB44 - main

IEC PowerContactor, Non-Reversing, 24VDC

  • Mfr # 3RT20262BB44

  • Zoro # G8360957

product price: $370.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20262BB44
Zoro #
G8360957
UPC #
662643914122
Country of Origin
Germany

Dimensions

Height
102 mm
Width
45 mm
Depth
154 mm
Frame Size
S0
Mounting Hole Distance - Width
1.38 in
Overall Width
2.13 in
Overall Height
6.42 in
Overall Depth
4.26 in
Mounting Hole Distance - Height
2.36 in
Mounting Hole Diameter
0.19 in

Details

Item
IEC Power Contactor
Full Load Amps-Inductive
25 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
24 V DC
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 208V
5 hp
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 575V
20 hp
HP @ 3 Phase - 480V
15 hp
Standards
REACH Art 33, WEEE (2012/19/EU)
Aux. Contact Configuration
2NO/2NC
Series
SIRIUS 3RT20
Frame / Series / Class / Code
S0
Auxiliary Contact Form
2NO/2NC
Power loss per pole, current-dependent [PlIp]
1.9 watt
Connection type
Spring pulley connection
Number of making contacts and main contacts
3
Rated operating current Ie with AC-3, 400 V
25 ampere
Power loss, static, current-independent [Pls]
5.9 watt
suitable for series installation
Yes
min. rated control voltage Us with DC
24 volt
Rated operating power with AC-3, 400 V
11 kilowatt
Rated current [In] for the power loss specification
25 ampere
rated operational power AC-1 at 400 V
23 kilowatt
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Three Phase - 600V AC
20 hp
Minimum Operating Temperature
-13 Degrees F
Mounting Postion
Vertical
Response Time
10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)
Mounting Style
DIN Rail, Surface
Maximum Voltage Rating
690V AC
Phase
Three
Maximum Operating Temperature
140 Degrees F
Terminal Connection Type
Spring Loaded Terminals
Reversing Capability
Non-Reversing
Full Load Current - Inductive
25 A
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Embedded Surge Suppressor
No
Coil Voltage
24V DC
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Single Phase - 240V AC
3 hp
IP Rating
IP20
Number of Auxillary Contacts
4
Full Load Current - Resistive
40 A
Includes Auxiliary Contacts
Yes
Mechanical Operating Durability
10,000,000
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure

Description

IEC Power Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 6.42 in, Overall Width 2.13 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 4, Contactor Style IEC
