  13. IECMagContactor, NonReversing, 110VAC

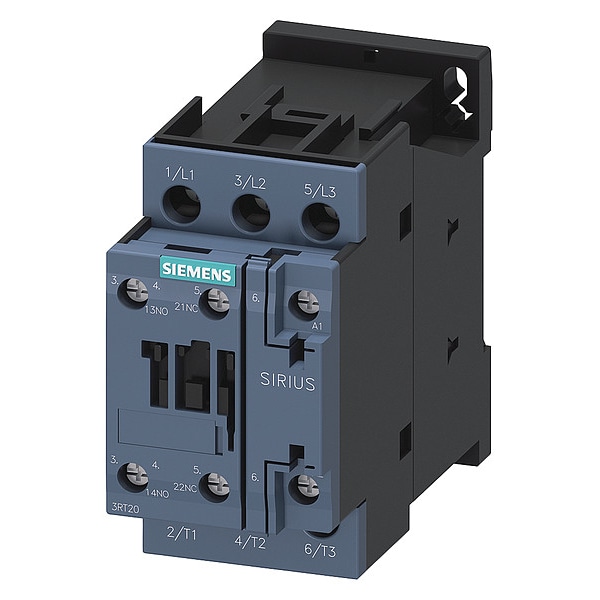

Siemens IECMagContactor, NonReversing, 110VAC 3RT20271AF00 - main

IECMagContactor, NonReversing, 110VAC

  • Mfr # 3RT20271AF00

  • Zoro # G8359505

product price: $243.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
32 A
Full Load Amps-Resistive
50 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
2 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20271AF00
Zoro #
G8359505
UPC #
662643915686
Country of Origin
Germany

Dimensions

Height
85 mm
Width
45 mm
Depth
97 mm
Overall Depth
3.63 in
Mounting Hole Distance - Width
1.38 in
Overall Width
2.13 in
Frame Size
S0
Mounting Hole Distance - Height
2.36 in
Mounting Hole Diameter
0.19 in
Overall Height
4.18 in

Details

Full Load Amps-Inductive
32 A
Item
IEC Magnetic Contactor
Full Load Amps-Resistive
50 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
5 hp
HP @ 3 Phase - 208V
10 hp
HP @ 3 Phase - 240V
10 hp
HP @ 3 Phase - 575V
25 hp
HP @ 3 Phase - 480V
20 hp
Standards
REACH Art 33, WEEE (2012/19/EU)
Auxiliary Contact Form
1NO/1NC
Aux. Contact Configuration
1NO/1NC
Hz
50
Series
SIRIUS 3RT20
Frame / Series / Class / Code
S0
Connection type
Screw connection
Max. rated AC voltage for controls, 50 Hz
110 volt
Number of making contacts and main contacts
3
suitable for series installation
Yes
Rated operating power with AC-3, 400 V
15 kilowatt
rated operational power AC-1 at 400 V
28 kilowatt
Power loss, static, current-independent [Pls]
9.8 watt
Rated operating current Ie with AC-3, 400 V
32 ampere
Rated current [In] for the power loss specification
32 ampere
Power loss per pole, current-dependent [PlIp]
2.3 watt
Reversing Capability
Non-Reversing
IP Rating
IP20
Response Time
4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC)
Horsepower @ Three Phase - 480V AC
20 hp
Mechanical Operating Durability
10,000,000
Mounting Style
DIN Rail, Surface
Number of Auxillary Contacts
2
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Full Load Current - Inductive
32 A
Maximum Voltage Rating
690V AC
Mounting Postion
Vertical
Terminal Connection Type
Screw Terminals
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 600V AC
25 hp
Maximum Operating Temperature
140 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Number of Normally Open Main Contacts
3
Frequency
50 Hz
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
Full Load Current - Resistive
50 A
Horsepower @ Three Phase - 240V AC
10 hp
Embedded Surge Suppressor
No
Phase
Three
Includes Auxiliary Contacts
Yes
Coil Voltage
110V AC

Description

IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 32 A, Full Load Current - Resistive 50 A, Reversing Capability Non-Reversing, Overall Height 4.18 in, Overall Width 2.13 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
