  13. IECPowerContactor, Non-Reversing, 110VAC

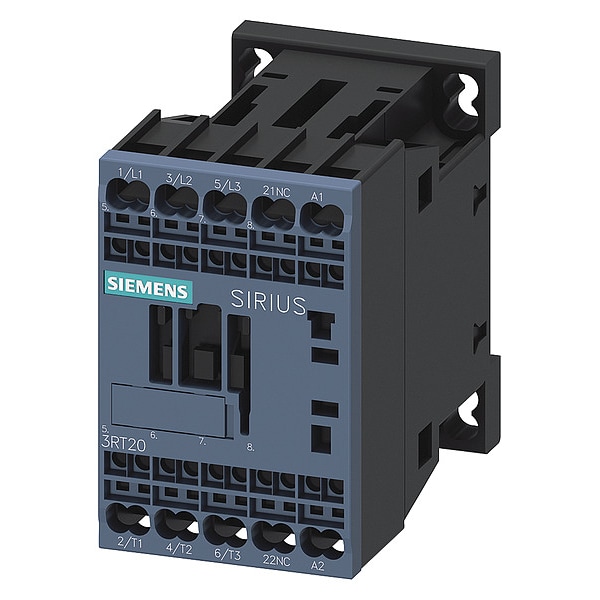

Siemens IECPowerContactor, Non-Reversing, 110VAC 3RT20162AF02 - main

IECPowerContactor, Non-Reversing, 110VAC

  • Mfr # 3RT20162AF02

  • Zoro # G8361422

product price: $90.39
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
1/3 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20162AF02
Zoro #
G8361422
UPC #
662643908152
Country of Origin
Germany

Dimensions

Height
70 mm
Width
45 mm
Depth
73 mm
Mounting Hole Diameter
0.2 in
Overall Height
3.08 in
Overall Depth
2.92 in
Mounting Hole Distance - Height
1.97 in
Overall Width
1.97 in
Frame Size
S00
Mounting Hole Distance - Width
1.38 in

Details

Item
IEC Power Contactor
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
22 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
1/3 hp
HP @ 1 Phase - 240V
1 hp
HP @ 3 Phase - 208V
2 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 3 Phase - 480V
5 hp
Series
SIRIUS 3RT20
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S00
Auxiliary Contact Form
1NC
Aux. Contact Configuration
1NC
Hz
50/60
Rated operating power with AC-3, 400 V
4 kilowatt
suitable for series installation
Yes
Power loss, static, current-independent [Pls]
4.2 watt
Rated current [In] for the power loss specification
9 ampere
Max. rated AC voltage for controls, 50 Hz
110 volt
Connection type
Spring pulley connection
max. rated AC voltage for controls (60 Hz)
110 volt
rated operational power AC-1 at 400 V
13 kilowatt
Power loss per pole, current-dependent [PlIp]
0.3 watt
Number of making contacts and main contacts
3
Rated operating current Ie with AC-3, 400 V
9 ampere
Mounting Postion
Vertical
Reversing Capability
Non-Reversing
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
1/3 hp
Number of Normally Open Main Contacts
3
Contactor Style
IEC
Horsepower @ Three Phase - 240V AC
3 hp
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Response Time
10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)
Horsepower @ Three Phase - 208V AC
2 hp
Number of Auxillary Contacts
1
Horsepower @ Single Phase - 240V AC
1 hp
Horsepower @ Three Phase - 480V AC
5 hp
IP Rating
IP20
Full Load Current - Inductive
9 A
Terminal Connection Type
Spring Loaded Terminals
Mechanical Operating Durability
30,000,000
Maximum Operating Temperature
140 Degrees F
Maximum Voltage Rating
690V AC
Phase
Three
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Minimum Operating Temperature
-13 Degrees F
Coil Voltage
110V AC
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Surface
Full Load Current - Resistive
22 A

Description

IEC Power Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
