  13. IECPowerContactor, Non-Reversing, 110VAC

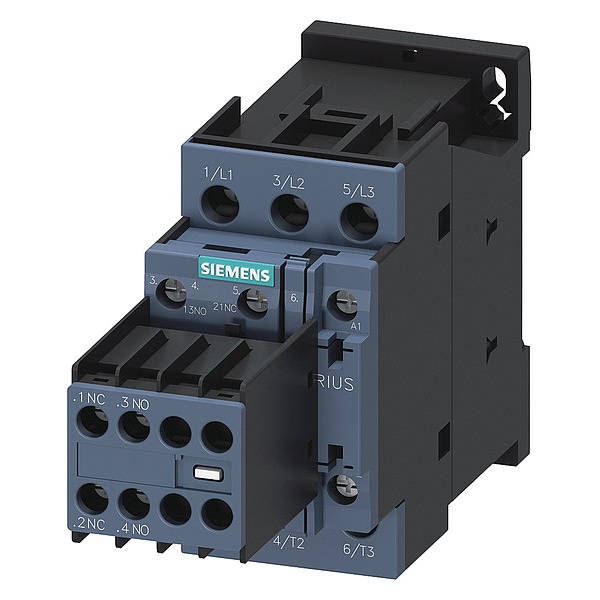

Siemens IECPowerContactor, Non-Reversing, 110VAC 3RT20241AG24 - main

IECPowerContactor, Non-Reversing, 110VAC

  • Mfr # 3RT20241AG24

  • Zoro # G8359715

product price: $162.00
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
12 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20241AG24
Zoro #
G8359715
UPC #
662643913057
Country of Origin
Germany

Dimensions

Height
85 mm
Width
45 mm
Depth
141 mm
Frame Size
S0
Mounting Hole Diameter
0.19 in
Mounting Hole Distance - Height
2.36 in
Mounting Hole Distance - Width
1.38 in
Overall Height
5.87 in
Overall Depth
3.63 in
Overall Width
2.13 in

Details

Full Load Amps-Inductive
12 A
Item
IEC Power Contactor
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
1 hp
HP @ 1 Phase - 240V
2 hp
HP @ 3 Phase - 208V
3 hp
HP @ 3 Phase - 575V
10 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 480V
7 1/2 hp
Series
SIRIUS 3RT20
Hz
50/60
Aux. Contact Configuration
2NO/2NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S0
Auxiliary Contact Form
2NO/2NC
Power loss per pole, current-dependent [PlIp]
0.3 watt
Connection type
Screw connection
max. rated AC voltage for controls (60 Hz)
110 volt
Power loss, static, current-independent [Pls]
7.9 watt
Rated operating power with AC-3, 400 V
6 kilowatt
Number of making contacts and main contacts
3
suitable for series installation
Yes
rated operational power AC-1 at 400 V
23 kilowatt
Max. rated AC voltage for controls, 50 Hz
110 volt
Rated operating current Ie with AC-3, 400 V
12 ampere
Rated current [In] for the power loss specification
12 ampere
Mounting Postion
Vertical
Frequency
50/60 Hz
Reversing Capability
Non-Reversing
Phase
Three
Contactor Style
IEC
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 240V AC
2 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
1 hp
Response Time
4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC)
Minimum Operating Temperature
-13 Degrees F
IP Rating
IP20
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Resistive
40 A
Full Load Current - Inductive
12 A
Number of Auxillary Contacts
4
Mounting Style
DIN Rail, Surface
NEMA Enclosure Rating
No Enclosure
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 600V AC
10 hp
Terminal Connection Type
Screw Terminals
Coil Voltage
110V AC
Embedded Surge Suppressor
No
Mechanical Operating Durability
10,000,000
Horsepower @ Three Phase - 480V AC
7 1/2 hp

Description

IEC Power Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 5.87 in, Overall Width 2.13 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 4, Contactor Style IEC
