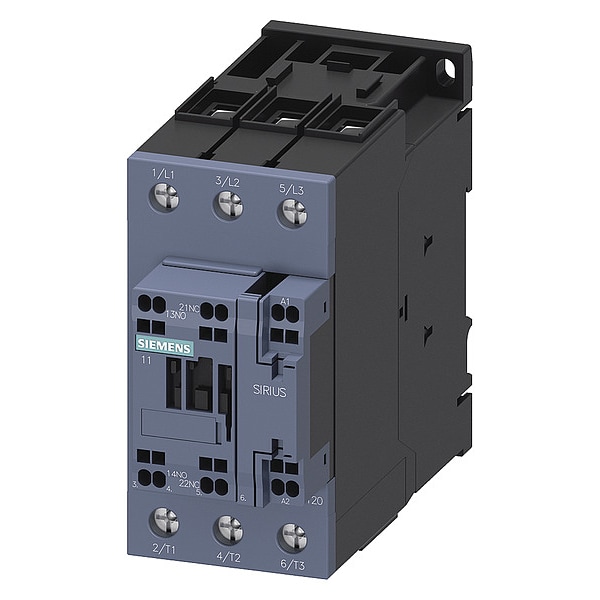

Siemens IECPowerContactor, Non-Reversing, 110VAC 3RT20383AG20 - main

IECPowerContactor, Non-Reversing, 110VAC

  • Mfr # 3RT20383AG20

  • Zoro # G8362165

product price: $451.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
80 A
Full Load Amps-Resistive
90 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
5 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT20383AG20
Zoro #
G8362165
UPC #
887621918477
Country of Origin
Germany

Dimensions

Height
114 mm
Width
55 mm
Depth
130 mm
Overall Width
2.44 in
Frame Size
S2
Overall Height
5.59 in
Mounting Hole Diameter
0.2 in
Mounting Hole Distance - Height
3.84 in
Overall Depth
4.82 in
Mounting Hole Distance - Width
1.77 in

Details

Item
IEC Power Contactor
Full Load Amps-Inductive
80 A
Full Load Amps-Resistive
90 A
Number of Poles
3
Coil Volts
110 V AC
HP @ 1 Phase - 120V
5 hp
HP @ 1 Phase - 240V
15 hp
HP @ 3 Phase - 208V
20 hp
HP @ 3 Phase - 240V
25 hp
HP @ 3 Phase - 575V
60 hp
HP @ 3 Phase - 480V
50 hp
Frame / Series / Class / Code
S2
Auxiliary Contact Form
1NO/1NC
Aux. Contact Configuration
1NO/1NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Hz
50/60
Series
SIRIUS 3RT20
Rated operating power with AC-3, 400 V
37 kilowatt
Connection type
Screw connection
Power loss per pole, current-dependent [PlIp]
5.7 watt
suitable for series installation
Yes
rated operational power AC-1 at 400 V
59 kilowatt
Rated current [In] for the power loss specification
80 ampere
Rated operating current Ie with AC-3, 400 V
80 ampere
max. rated AC voltage for controls (60 Hz)
110 volt
Max. rated AC voltage for controls, 50 Hz
110 volt
Power loss, static, current-independent [Pls]
17.2 watt
Number of making contacts and main contacts
3
Number of Auxillary Contacts
2
Horsepower @ Three Phase - 208V AC
20 hp
Number of Normally Open Main Contacts
3
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
Embedded Surge Suppressor
No
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Reversing Capability
Non-Reversing
Horsepower @ Single Phase - 240V AC
15 hp
Horsepower @ Three Phase - 480V AC
50 hp
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
10,000,000
Full Load Current - Inductive
80 A
Mounting Style
DIN Rail, Surface
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 240V AC
25 hp
IP Rating
IP20
Horsepower @ Single Phase - 120V AC
5 hp
Horsepower @ Three Phase - 600V AC
60 hp
Terminal Connection Type
Spring Loaded Terminals
Coil Voltage
110V AC
Mounting Postion
Vertical
Full Load Current - Resistive
90 A

Description

IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 80 A, Full Load Current - Resistive 90 A, Reversing Capability Non-Reversing, Overall Height 5.59 in, Overall Width 2.44 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S2, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
