  15. Illuminated Push Button, 30 mm, 1NO/1NC, White

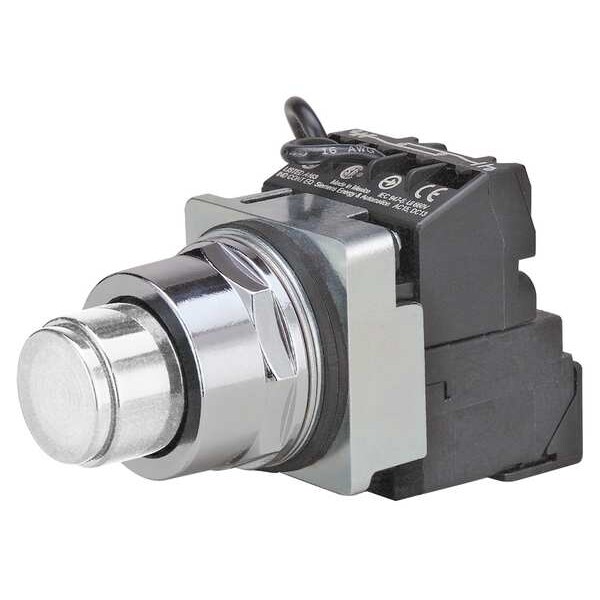

Siemens Illuminated Push Button, 30 mm, 1NO/1NC, White 52PT6GBA - main

Illuminated Push Button, 30 mm, 1NO/1NC, White

  • Mfr # 52PT6GBA

  • Zoro # G2836687

product price: $179.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52PT6GBA
Zoro #
G2836687
UPC #
662643315004
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Height
4.24 in
Overall Width
2.15 in
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA, REACH, UL Listed
Lamp Module Type
Transformer
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
Basic Material
Metal
Contact Type
1NO/1NC
Color
White
Lamp Voltage
6V AC
Type of Operator
Round Button
Number of Operators
1
Replacement Lamp
Mfr. No. 52AABN
Contact Rating
10A @ 600V AC
Voltage
120V AC
Bezel
Chrome Plated Zinc Die Cast
Lamp Module Voltage
120V AC
Lamp Type
Incandescent
NEMA Contact Rating Designation
A600/P600
Contact Form
1NO/1NC
IP Rating
IP20, IP66
AC Contact Rating
10 A @ 600 V
Bezel Material
Chrome
Series
52
DC Contact Rating
Not Rated
Features
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type
Push Button Operators
Operating Temperature - Minimum
31 Degrees F
Lamp Voltage - Maximum
120 V AC
Operator Voltage Rating - Maximum
600 V AC
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Resistance Properties
Oil and Grease Resistant, Watertight
Mechanical Operating Durability
3.00 x 10^5
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operator Material
Metal
Operating Temperature - Maximum
158 Degrees F

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color White, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
