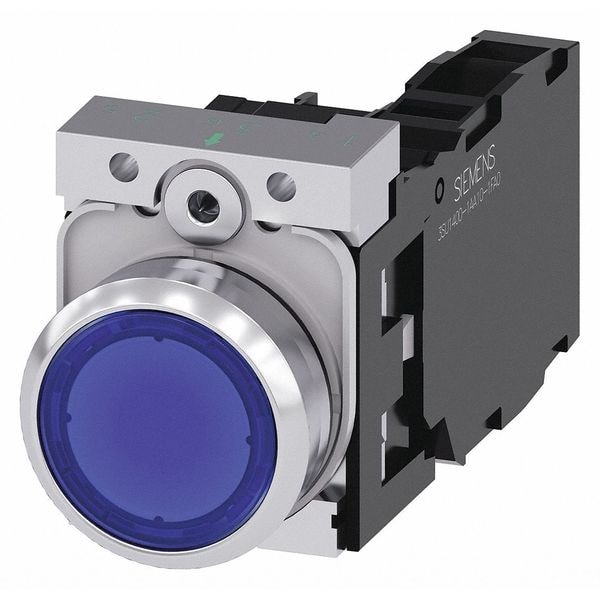

Siemens Illuminated Push Button, Blue, 22mm, LED 3SU1152-0AB50-1FA0 - main

Illuminated Push Button, Blue, 22mm, LED

  • Mfr # 3SU1152-0AB50-1FA0

  • Zoro # G3040718

product price: $95.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Blue
Replacement Lamp
Not Replaceable
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Type
Full Voltage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1152-0AB50-1FA0
Zoro #
G3040718
UPC #
804766359033
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Width
2 in
Overall Depth
3.5 in
Manufacturer Warranty Length
1 yr
Overall Height
1.4 in
Panel Cutout Diameter
22 mm

Details

Item
Illuminated Push Button
Voltage
24V AC/DC
Color
Blue
Replacement Lamp
Not Replaceable
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Type
Full Voltage
Terminal Connection
Screw
Basic Material
Metal
Lamp Type
LED
Type of Operator
Flush Button
Bezel
Nickel Plated Brass and Zinc Die Cast
Contact Form
1NO/1NC
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Action
Momentary
Contact Type
1NO/1NC
Lamp Voltage
24V AC/DC
Number of Operators
1
Head Material
Plastic
Lamp Module Voltage
24V AC/DC
Standards
CAS, REACH, WEEE (2012/19/EU)
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
NEMA Contact Rating Designation
A600/R300
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Type
Illuminated pushbuttons
Bezel Material
Metal
Application
Complete unit
Connection
screw-type terminals
Operating cycles
3000000
Mounting
front plate mounting
Environmental Conditions
-25
Number of Poles
1
Actuator
Button, flat
Operating Temperature
-25°C to 70°C
Contact configuration
36526
Special Features
Yes
Insulation
IP66, IP67, IP69(IP69K)
Voltage rating
5
Indicator
Light source
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
AC Contact Rating
10 A @ 600 V
Number of Indicator Lights
0
DC Contact Rating
5 A @ 600 V
Operator Voltage Rating - Maximum
500 V
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Minimum
-13 Degrees F
Push Button Style
Flush
Head Color
Blue
Mechanical Operating Durability
3.00 x 10^6
Operator Illumination
Illuminated
Operator Material
Metal
Operating Temperature - Maximum
158 Degrees F
Series
3SU

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Nickel Plated Brass and Zinc Die Cast, Color Blue, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
