  15. Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Amber

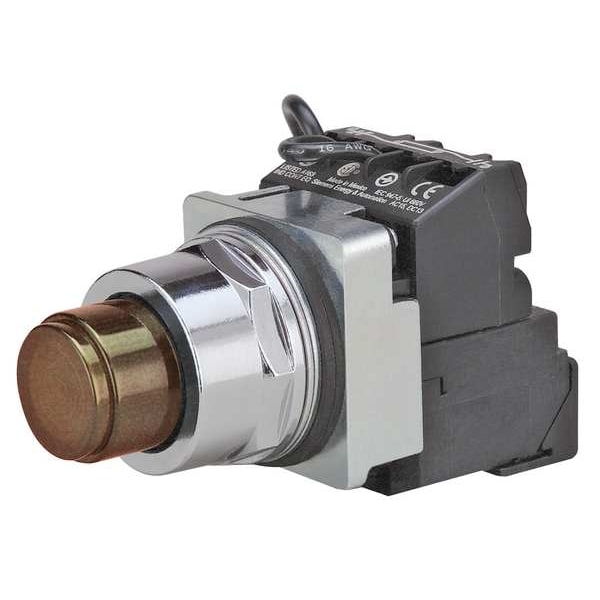

Siemens Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Amber 52PT6D9A - main

Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Amber

  • Mfr # 52PT6D9A

  • Zoro # G1106567

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Amber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52PT6D9A
Zoro #
G1106567
UPC #
662643314885
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Height
4.24 in
Manufacturer Warranty Length
1 yr
Overall Width
2.15 in

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Amber
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA, REACH, UL Listed
Lamp Module Type
Full Voltage
Basic Material
Metal
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
Voltage
24V AC/DC
Contact Rating
10A @ 600V AC
NEMA Contact Rating Designation
A600/P600
Type of Operator
Round Button
Lamp Voltage
24V AC/DC
Lamp Type
Incandescent
Contact Type
1NO/1NC
Color
Amber
Replacement Lamp
Mfr. No. 52AADN
Lamp Module Voltage
24V AC/DC
Bezel
Chrome Plated Zinc Die Cast
Contact Form
1NO/1NC
Number of Operators
1
IP Rating
IP20, IP66
Bezel Material
Chrome
DC Contact Rating
Not Rated
Series
Class 52
AC Contact Rating
10 A @ 600 V
Features
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type
Push Button Operators
Lamp Voltage - Maximum
24 V AC/DC
Operator Voltage Rating - Maximum
600 V AC
Operator Material
Metal
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Resistance Properties
Oil and Grease Resistant, Watertight
Number of Indicator Lights
0
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
3.00 x 10^5
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operating Temperature - Minimum
31 Degrees F

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Amber, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
