  15. Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red

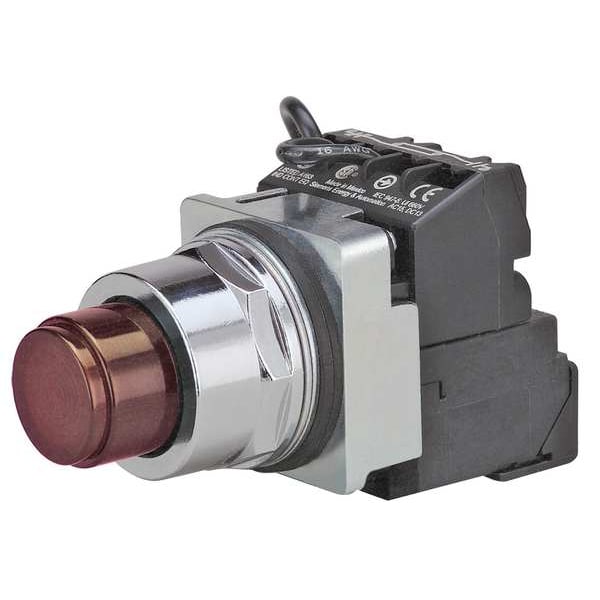

Siemens Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red 52PT6D2AB - main

Illuminated Push Button, Extended, Momentary Action, Not Applicable Release, Illuminated, Red

  • Mfr # 52PT6D2AB

  • Zoro # G1197777

product price: $168.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
52PT6D2AB
Zoro #
G1197777
UPC #
662643314854
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Overall Width
2.15 in
Manufacturer Warranty Length
1 yr
Overall Height
4.24 in

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA, REACH, UL Listed
Type of Operator
Round Button
NEMA Contact Rating Designation
A600/P600
Lamp Voltage
24V AC/DC
Contact Rating
10A @ 600V AC
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
Color
Red
Contact Form
1NO/1NC
Replacement Lamp
Mfr. No. 52AED2
Lamp Module Voltage
24V AC/DC
Number of Operators
1
Bezel
Chrome Plated Zinc Die Cast
Contact Type
1NO/1NC
Lamp Type
LED
Lamp Module Type
Full Voltage
Voltage
24V AC/DC
Basic Material
Metal
IP Rating
IP20, IP66
DC Contact Rating
Not Rated
Bezel Material
Chrome
AC Contact Rating
10 A @ 600 V
Series
Class 52
Features
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type
Push Button Operators
Operating Temperature - Minimum
31 Degrees F
Operator Material
Metal
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Resistance Properties
Oil and Grease Resistant, Watertight
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Mechanical Operating Durability
3.00 x 10^5

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
