  15. Illuminated Push Button, Green, 22mm, LED

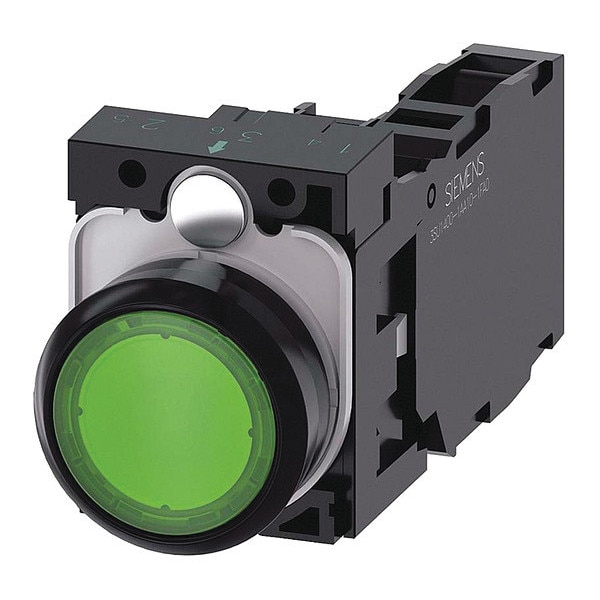

Siemens Illuminated Push Button, Green, 22mm, LED 3SU1102-0AB40-1FA0 - main

Illuminated Push Button, Green, 22mm, LED

  • Mfr # 3SU1102-0AB40-1FA0

  • Zoro # G3040587

product price: $98.89
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC/DC
Color
Green
Replacement Lamp
Not Replaceable
Contact Form
1NO/1NC
Size
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1102-0AB40-1FA0
Zoro #
G3040587
UPC #
-
Country of Origin
Germany

Dimensions

Size
22 mm
Overall Width
8 in
Panel Cutout Diameter
22 mm
Overall Depth
6.5 in
Overall Height
1.35 in
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Voltage
24V AC/DC
Color
Green
Replacement Lamp
Not Replaceable
Contact Form
1NO/1NC
Number of Operators
1
Terminal Connection
Screw
Lamp Module Voltage
24V AC/DC
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Standards
CAS, REACH, WEEE (2012/19/EU)
Lamp Type
LED
Basic Material
Plastic
IP Rating
IP66, IP67, IP69, IP69K
Lamp Voltage
24V AC/DC
Bezel
Plastic
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Contact Type
1NO/1NC
NEMA Contact Rating Designation
A600/R300
Action
Momentary
Lamp Module Type
Full Voltage
Head Material
Plastic
Type of Operator
Flush Button
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Application
Complete unit
Bezel Material
Plastic
Type
Illuminated pushbuttons
Operating Temperature
-25°C to 70°C
Special Features
Yes
Operating cycles
3000000
Mounting
front plate mounting
Indicator
Light source
Actuator
Button, flat
Connection
screw-type terminals
Environmental Conditions
-25
Voltage rating
5
Number of Poles
1
Insulation
IP66, IP67, IP69(IP69K)
Contact configuration
36526
Operator Material
Plastic
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Push Button Style
Flush
DC Contact Rating
5 A @ 600 V
Operating Temperature - Maximum
158 Degrees F
Series
3SU
Lamp Voltage - Maximum
24 V AC/DC
Number of Indicator Lights
0
Head Color
Green
AC Contact Rating
10 A @ 600 V
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
3.00 x 10^6
Operator Illumination
Illuminated
Operator Voltage Rating - Maximum
500 V

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Green, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
