  15. Illuminated Push Button, Yellow, 22mm, LED

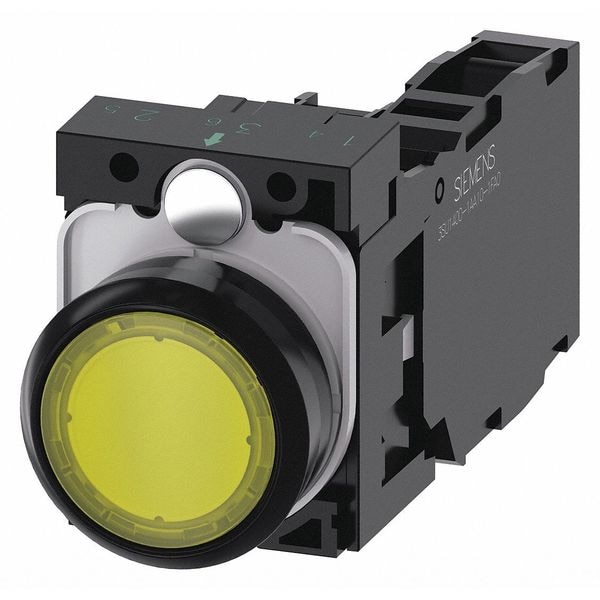

Siemens Illuminated Push Button, Yellow, 22mm, LED 3SU1103-0AB30-1FA0 - main

Illuminated Push Button, Yellow, 22mm, LED

  • Mfr # 3SU1103-0AB30-1FA0

  • Zoro # G3040952

product price: $39.99
/ea

Key Features

Voltage
120V AC
Color
Yellow
Lamp Module Type
Full Voltage
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Contact Rating
10A @ 600V AC, 5A @ 600V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3SU1103-0AB30-1FA0
Zoro #
G3040952
UPC #
804766359101
Country of Origin
Germany

Dimensions

Size
22 mm
Manufacturer Warranty Length
1 yr
Overall Height
1.4 in
Panel Cutout Diameter
22 mm
Overall Width
5.75 in
Overall Depth
7.85 in

Details

Item
Illuminated Push Button
Voltage
120V AC
Color
Yellow
Lamp Module Type
Full Voltage
NEMA Rating
1, 12, 2, 3, 3R, 4, 4X
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Lamp Module Voltage
120V AC
Replacement Lamp
Not Replaceable
Action
Momentary
Lamp Type
LED
Type of Operator
Flush Button
Number of Operators
1
Terminal Connection
Screw
Basic Material
Plastic
Contact Type
1NO/1NC
Head Material
Plastic
Contact Form
1NO/1NC
Lamp Voltage
120V AC
Bezel
Plastic
NEMA Contact Rating Designation
A600/R300
IP Rating
IP66, IP67, IP69, IP69K
Standards
CAS, REACH, WEEE (2012/19/EU)
Features
Possible to Select 1 to 4 Positions with ID Keys, Four ID Keys with Different Codes
Product Type
Push Button Operators
Bezel Material
Plastic
Application
Complete unit
Type
Illuminated pushbuttons
Number of Poles
1
Actuator
Button, flat
Contact configuration
36526
Voltage rating
5
Mounting
front plate mounting
Indicator
Light source
Operating Temperature
-25°C to 70°C
Special Features
Yes
Insulation
IP66, IP67, IP69(IP69K)
Environmental Conditions
-25
Operating cycles
3000000
Connection
screw-type terminals
Operator Voltage Rating - Maximum
500 V
Operating Temperature - Minimum
-13 Degrees F
Head Color
Yellow
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 2, 3, 3R, 4, 4X
Number of Indicator Lights
0
Mechanical Operating Durability
3.00 x 10^6
Push Button Style
Flush
DC Contact Rating
5 A @ 600 V
Lamp Voltage - Maximum
120 V AC
Operator Material
Plastic
Operator Illumination
Illuminated
AC Contact Rating
10 A @ 600 V
Series
3SU

Description

Illuminated Push Button, 22 mm, Momentary Action, Flush Button Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Plastic, Color Yellow, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/R300, Number of Operators 1, NEMA Rating 1, 12, 2, 3, 3R, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable, Standards CAS, REACH, WEEE (2012/19/EU), Terminal Connection Screw
