  11. Industrial Ethernet FC TP Standard cable

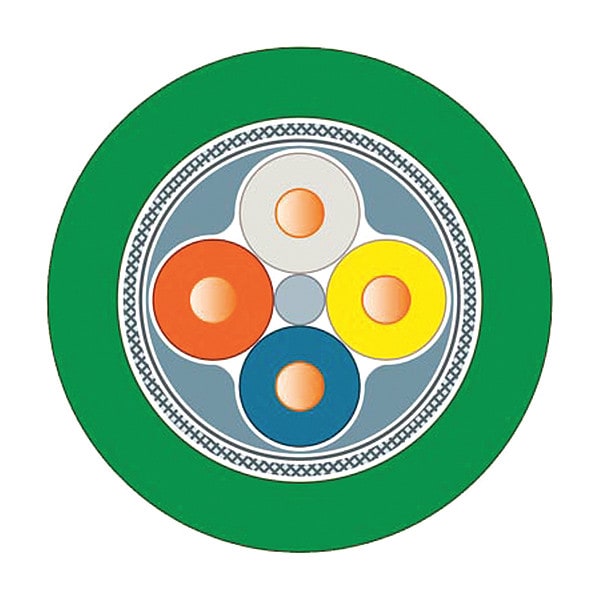

Siemens Industrial Ethernet FC TP Standard cable 6XV18402AH10 - main

Industrial Ethernet FC TP Standard cable

  • Mfr # 6XV18402AH10

  • Zoro # G8361255

product price: $4.29
/ea
Sold in multiples of 20 for $85.80

Key Features

Cable Length
328 ft
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Bend Radius
49 mm
Temp. Range
-40 Degrees F to 167 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6XV18402AH10
Zoro #
G8361255
UPC #
662643218589
Country of Origin
Germany

Dimensions

Cable Length
328 ft
Bend Radius
49 mm
Conductor Size - Data Cable
22 AWG
Length - Patch Cord
100m
Outer diameter of the cable
6.5 millimetre
Diameter of conductor
0.64 millimetre
Outside Diameter
0.3 in

Details

Item
Ethernet Cable
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Temp. Range
-40 Degrees F to 167 Degrees F
Jacket Material
PVC
Jacket Color
Green
Shielded
Shielded
NEC Article and Type
Not Rated
Item - Data Cable
Communication Cable
Fire Rating - Data Cable
Not Rated
Insulation Material
PE
Shielding Material
Aluminum-Clad Foil
Number of Conductors
4
Jacket Material - Wire and Cable
PVC
Transmission Speed
100 Mbps
Boot Type - Data cable
Bootless, Bootless
Connector Type - Patch Cord
RJ45, RJ45
Cable Shape
Round
Material of the wire insulation
PE
Marking of conductors
Color
max. traction stress
150 newton
Min. perm. surface temperature with stationary lines
-40 degree_Celsius
design of shield
Overlapped aluminum-clad foil, sheathed in a braided screen
Design of shield over cabling
Film + fabric
max. ambient temperature during operating phase
75 degree_Celsius
Max. perm. surface temperature with open (not stationary) lines
-40 degree_Celsius
min. ambient temperature during operating phase
-40 degree_Celsius
USP information
IE FC TP Standard Cable 2x2,Industrial Ethernet,Twisted Pair
Class of conductor
Kl.1 = single-wire
Number of wires
4
RoHS attention of conformity
1
Construction of the cabled element
Quad
Min. perm. surface temperature with open (not stationary) lines
75 degree_Celsius
Material of the mantle
Polyvinyl chloride
Color of coat
green
Max. perm. surface temperature with stationary lines
75 degree_Celsius
Maximum Voltage Rating
80 V
Maximum Impedance
100 ohm
Minimum Operating Temperature
-40 Degrees F
Fire Rating
Not Rated
Maximum Operating Temperature
167 Degrees F
Resistance Properties
Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant

Description

Ethernet Cable, Cable Length 328 ft, Fire Rating Not Rated, Insulation Material PE, Jacket Color Green, Jacket Material PVC, Shielded Shielded, Shielding Material Aluminum-Clad Foil, Number of Conductors 4, Outside Diameter 0.3 in, Maximum Voltage Rating 80 V, NEC Article and Type Not Rated, Standards RoHS Compliant Directive (2011/65/EU), Bend Radius 49 mm, Maximum Impedance 100 ohm, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -40 Degrees F
