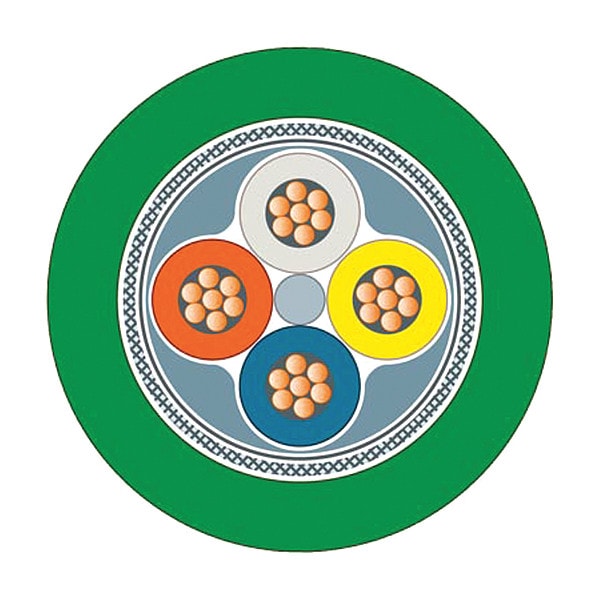

Siemens Industrial Ethernet FC TP Trailing cable 6XV18702D - main

Industrial Ethernet FC TP Trailing cable

  • Mfr # 6XV18702D

  • Zoro # G8359514

product price: $9.99
/ea
Sold in multiples of 20 for $199.80

Key Features

Cable Length
279 ft
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Jacket Color
Green
Fire Rating - Data Cable
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6XV18702D
Zoro #
G8359514
UPC #
662643220490
Country of Origin
Germany

Dimensions

Cable Length
279 ft
Bend Radius
32 1/2 mm
Conductor Size - Data Cable
22 AWG
Length - Patch Cord
85m
Outer diameter of the cable
6.5 millimetre
Diameter of conductor
0.75 millimetre
Outside Diameter
0.3 in

Details

Item
Ethernet Cable
Standards
RoHS Compliant Directive (2011/65/EU)
Category - Data Cable
5e
Jacket Color
Green
Fire Rating - Data Cable
Not Rated
Temp. Range
-25 Degrees F to 167 Degrees F
Number of Conductors
4
Jacket Material
PVC
Shielding Material
Aluminum-Clad Foil
NEC Article and Type
Not Rated
Shielded
Shielded
Item - Data Cable
Communication Cable
Insulation Material
PE
Jacket Material - Wire and Cable
PVC
Cable Shape
Round
Boot Type - Data cable
Bootless, Bootless
Connector Type - Patch Cord
RJ45, RJ45
Transmission Speed
100 Mbps
Design of shield over cabling
Film + fabric
Max. perm. surface temperature with stationary lines
75 degree_Celsius
Flame resistant according to standard
UL 1685
RoHS attention of conformity
1
Class of conductor
Kl.2 = multi-wire
Material of the mantle
Polyvinyl chloride
design of shield
Overlapped aluminum-clad foil, sheathed in a braided screen
Marking of conductors
Color
Min. perm. surface temperature with stationary lines
-25 degree_Celsius
max. ambient temperature during operating phase
75 degree_Celsius
USP information
IE FC TP Standard Cable 2x2,Industrial Ethernet,Twisted Pair
Color of coat
green
max. traction stress
150 newton
Max. perm. surface temperature with open (not stationary) lines
-25 degree_Celsius
Number of wires
4
Min. perm. surface temperature with open (not stationary) lines
75 degree_Celsius
min. ambient temperature during operating phase
-25 degree_Celsius
Material of the wire insulation
PE
Construction of the cabled element
Quad
Maximum Voltage Rating
80 V
Maximum Impedance
100 ohm
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-13 Degrees F
Resistance Properties
Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant
Fire Rating
Not Rated

Description

Ethernet Cable, Cable Length 279 ft, Fire Rating Not Rated, Insulation Material PE, Jacket Color Green, Jacket Material PVC, Shielded Shielded, Shielding Material Aluminum-Clad Foil, Number of Conductors 4, Outside Diameter 0.3 in, Maximum Voltage Rating 80 V, NEC Article and Type Not Rated, Standards RoHS Compliant Directive (2011/65/EU), Bend Radius 32 1/2 mm, Maximum Impedance 100 ohm, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -13 Degrees F
