  13. Load Feeder, Non-Reversing, 1NC/1NO, 24V DC, 3 P, Screw

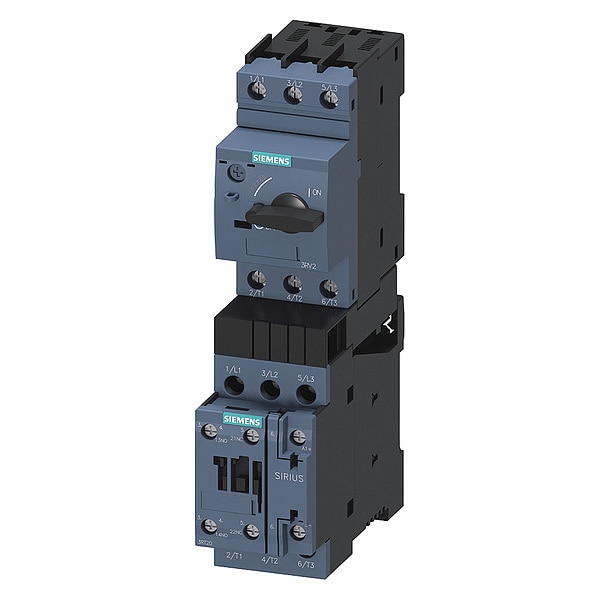

Siemens Load Feeder, Non-Reversing, 1NC/1NO, 24V DC, 3 P, Screw 3RA21204AA260BB4 - main

Load Feeder, Non-Reversing, 1NC/1NO, 24V DC, 3 P, Screw

  • Mfr # 3RA21204AA260BB4

  • Zoro # G8359618

product price: $682.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RA21204AA260BB4
Zoro #
G8359618
UPC #
662643900187
Country of Origin
Germany

Dimensions

NEMA Size
0
Overall Height
7.6 in
Overall Depth
4.21 in
Overall Width
1.77 in

Details

Item
Load Feeder
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V DC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
ATEX Compliant, CE, CSA, EAC, UL Listed
Features
Screw-Type Terminals
Includes
Short-Circuit Release
HP @ 3 Phase - 575V
10 hp
Maximum Voltage Rating
690V AC
Includes Auxiliary Contacts
Yes
Maximum Operating Temperature
140 Degrees F
Horsepower @ Three Phase - 480V AC
10 hp
Frequency
50/60 Hz
Mounting Style
DIN Rail
Minimum Operating Temperature
-4 Degrees F
Minimum Overload Relay Current Setting
11 A
Maximum Overload Relay Current Setting
16 A
Trip Class
10
Includes Pilot Light
No
Series
3RA2
Horsepower @ Three Phase - 208V AC
2 hp
Resistance Properties
Shock Resistant, Surge Voltage Resistant
Starter Style
NEMA
NEMA Enclosure Rating
No Enclosure
Mechanical Operating Durability
10,000,000
Current AC
16 A
IP Rating
IP20
Horsepower @ Three Phase - 600V AC
10 hp
Overload Protection Type
Thermal
Mounting Postion
Vertical

Description

Fuseless Load Feeder, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 16 A, Overload Protection Type Thermal, Minimum Overload Relay Current Setting 11 A, Trip Class 10, Series 3RA2, Number of Poles 3, Number of Auxillary Contacts 2, Mounting Style DIN Rail, Auxiliary Contact Form 1NO/1NC, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 690V AC, Coil Voltage 24V DC, Horsepower @ Three Phase - 600V AC 10 hp
