  13. Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 3.2 A

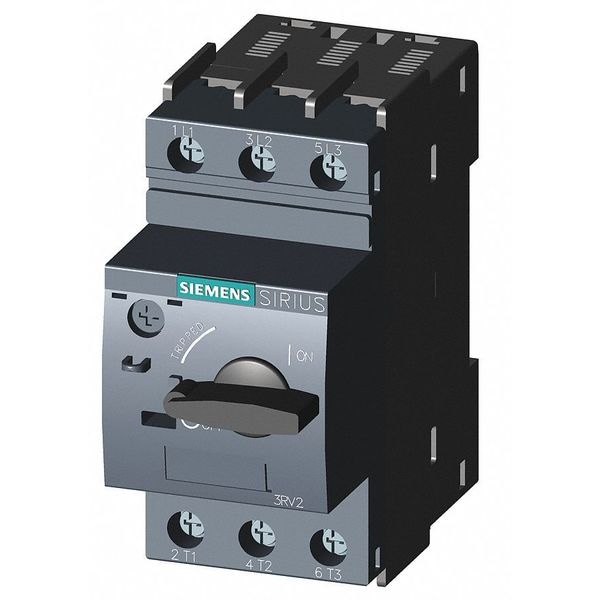

Siemens Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 3.2 A 3RV20111DA10 - main

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 3.2 A

  • Mfr # 3RV20111DA10

  • Zoro # G4316593

product price: $141.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
3.2 A
Series
Sirius 3RV20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RV20111DA10
Zoro #
G4316593
UPC #
662643921939
Country of Origin
Germany

Dimensions

Frame Size
S00
Overall Depth
4.35 in
Overall Width
4.35 in
Overall Height
4.7 in
Mounting Hole Diameter
1.38 in

Details

Item
Manual Motor Starter
Number of Poles
3
Operator
Selector Switch
Phase
3
Current AC
3.2 A
Series
Sirius 3RV20
Standards
Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845
HP @ 3 Phase - 460-575V
1.5/2
Description/Special Features
Thermal-Magnetic Trip Mechanism
Pilot Light
No
Phase Loss Sensitivity
No
HP @ 3 Phase - 575V
2 hp
HP @ 1 Phase - 230V
1/4 hp
Rated operating power with AC-3, 400 V
1 kilowatt
Rated operating power with AC-3, 230 V
1 kilowatt
Greatest value of overload release adjustment range
3.2 ampere
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
100000 ampere
Power loss per pole, current-dependent [PlIp]
2.4 watt
description of product type
3RV2
Sensitive to phase failure
Yes
Integrated undervoltage tripper present
No
Release system
magnetic
Rated permanent current Iu
3 ampere
Lowest value of setting range for overload tripper
2.2 ampere
Integrated auxiliary switch present
No
Horsepower @ Three Phase - 208V AC
1/2 hp
Starter Style
IEC
Horsepower @ Three Phase - 600V AC
2 hp
Electrical Operating Durability
100,000
Maximum Operating Temperature
140 Degrees F
IP Rating
IP20
Includes Pilot Light
No
Horsepower @ Three Phase - 240V AC
3/4 hp
Terminal Connection Type
Screw Terminals
Mounting Style
DIN Rail
Horsepower @ Single Phase - 120V AC
1/10 hp
Horsepower @ Single Phase - 240V AC
1/4 hp
Minimum Operating Temperature
-4 Degrees F
Minimum Overload Relay Current Setting
2.2 A
Mechanical Operating Durability
100,000
Frequency
50/60 Hz
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 480V AC
1 1/2 hp
Overload Protection Type
Thermal
NEMA Enclosure Rating
No Enclosure

Description

Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/10 hp, Horsepower @ Single Phase - 240V AC 1/4 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 3.2 A, Horsepower @ Three Phase - 208V AC 1/2 hp, Horsepower @ Three Phase - 240V AC 3/4 hp, Horsepower @ Three Phase - 480V AC 1 1/2 hp, Series Sirius 3RV20, Horsepower @ Three Phase - 600V AC 2 hp, Maximum Overload Relay Current Setting 3.2 A
