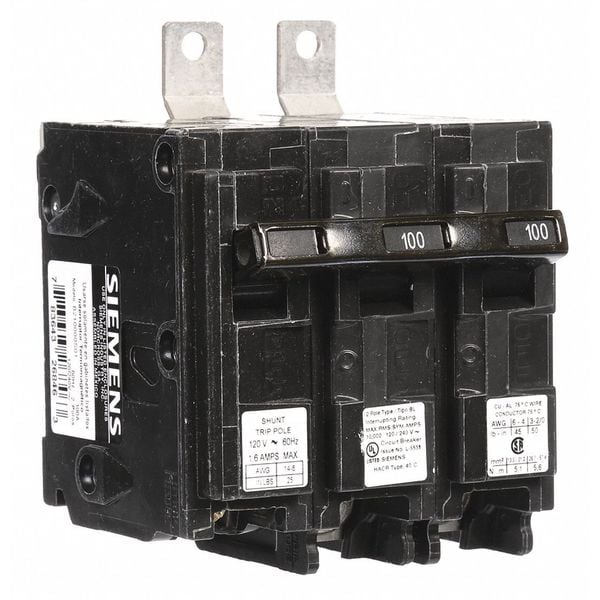

Miniature Circuit Breaker, BL Series, 100A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # B210000S01
Zoro # G3084873
product price:Â $609.99
/ea
Free Shipping & Returns
Key Features
Series
BL
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Shunt Trip
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
B210000S01
Zoro #
G3084873
UPC #
783643268463
Country of Origin
Mexico
Dimensions
Frame Size
125A/BL
Width
4.30 in
Depth
5-1/2 in
Height
3.70 in
Min. Wire Size
2 AWG (Al), 4 AWG (Cu)
Max. Wire Size
1/0 AWG
Length
3.7 in
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BL, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BL, Length 3.7 in, Width 4.3 in, Depth 5.5 in, Min. Wire Size 2 AWG (Al), 4 AWG (Cu)
