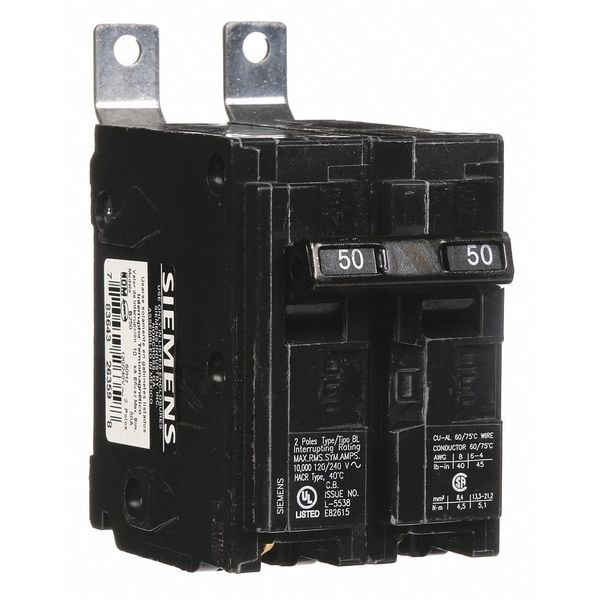

Miniature Circuit Breaker, BL Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # B250
Zoro # G0879042
CAD Available
product price:Â $120.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
BL
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
B250
Zoro #
G0879042
UPC #
783643263598
Country of Origin
Mexico
Dimensions
Frame Size
125A/BL
Width
3 in
Depth
4 in
Height
2 in
Max. Wire Size
4 AWG (Al), 6 AWG (Cu)
Min. Wire Size
8 AWG
Length
2 in
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BL, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BL, Length 2 in, Width 3 in, Depth 4 in, Min. Wire Size 8 AWG
