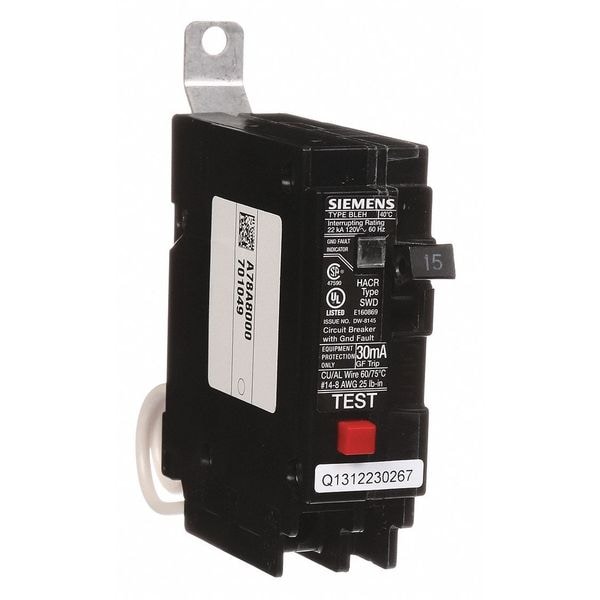

Miniature Circuit Breaker, BLE Series, 15A, 1 Pole, 120V AC, 22kA at 120V AC
Mfr # BE115H
Zoro # G3162957
product price:Â $506.99
/ea
Free Shipping & Returns
Key Features
Series
BLE
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BE115H
- Zoro #
- G3162957
- UPC #
- 783643266124
- Country of Origin
- Philippines
Dimensions
- Frame Size
- 60A/BLEH
- Width
- 4 in
- Depth
- 1 in
- Height
- 5 in
- Max. Wire Size
- 10 AWG
- Min. Wire Size
- 12 AWG (Al), 14 AWG (Cu)
- Length
- 5 in
Details
- Item
- Miniature Circuit Breaker
- Series
- BLE
- Amps
- 15A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Ground Fault Circuit Interrupter
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 22kA at 120V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- Not Rated
- For Use With
- Siemens P1 Panelboards
- Standards
- CSA Certified, HACR Rated, NOM Certified, UL Listed
- Application
- Electrical Distribution
- Compatible Panelboard/Load Center Series
- P1
- Voltage
- 120VAC
Description
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 120V AC, Circuit Breaker Type Ground Fault Equipment Protection, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BLE, Max. AIR Rating 22kA at 120V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 60A/BLEH, Length 5 in, Width 4 in, Depth 1 in
