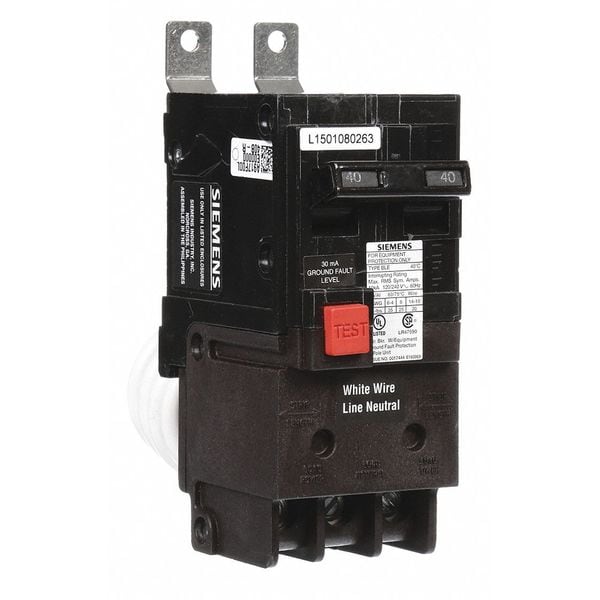

Miniature Circuit Breaker, BLE Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Mfr # BE240
Zoro # G1198127
product price:Â $563.99
/ea
Free Shipping & Returns
Key Features
Series
BLE
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
BE240
Zoro #
G1198127
UPC #
783643274136
Country of Origin
Philippines
Dimensions
Frame Size
60A/BLE
Width
3 in
Depth
6 in
Height
3 in
Max. Wire Size
4 AWG (Al), 6 AWG (Cu)
Min. Wire Size
8 AWG
Length
3 in
Details
Item
Miniature Circuit Breaker
Series
BLE
Amps
40A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
10kA at 120/240V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
For Use With
Siemens P1 Panelboards
Standards
CSA Certified, HACR Rated, NOM Certified, UL Listed
Application
Electrical Distribution
Compatible Panelboard/Load Center Series
P1
Voltage
120/240 VAC
Description
Miniature Circuit Breaker, Amps 40 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Ground Fault Equipment Protection, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BLE, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 60A/BLE, Length 3 in, Width 3 in, Depth 6 in, Min. Wire Size 8 AWG
