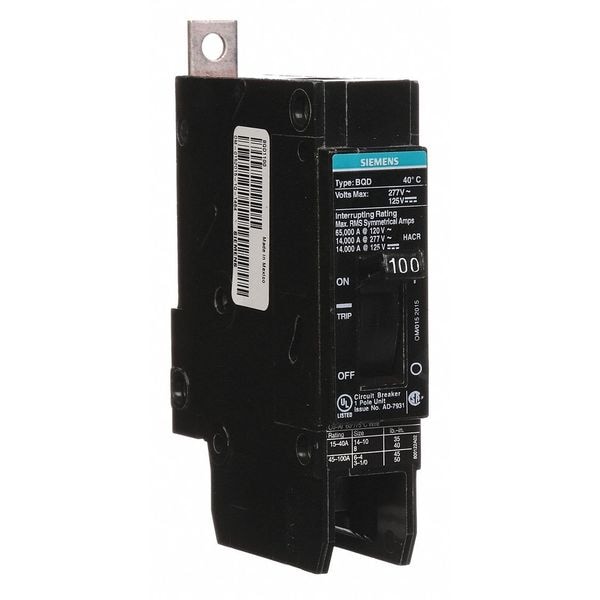

Miniature Circuit Breaker, BQD Series, 100A, 1 Pole, 277V AC, 14kA at 277V AC
Mfr # BQD1100
Zoro # G3483925
product price:Â $415.99
/ea
Free Shipping & Returns
Key Features
Series
BQD
Number of Poles
1
AC Voltage Rating
277V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BQD1100
- Zoro #
- G3483925
- UPC #
- 783643277205
- Country of Origin
- Mexico
Dimensions
- Frame Size
- 100A/BQD
- Width
- 1 in
- Depth
- 2.70 in
- Height
- 4.49 in
- Max. Wire Size
- 1/0 AWG
- Min. Wire Size
- 6 AWG (Al), 8 AWG (Cu)
- Length
- 4.5 in
Details
- Item
- Miniature Circuit Breaker
- Series
- BQD
- Amps
- 100A
- Number of Poles
- 1
- AC Voltage Rating
- 277V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 14kA at 277V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- 125V DC
- Standards
- CSA-C22.2,UL 489
- For Use With
- Siemens P1 Panelboards
- Compatible Panelboard/Load Center Series
- P1
- Max. Operating Temp.
- 104 Degrees F
- Voltage
- 277VAC
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 277V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 125V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BQD, Max. AIR Rating 14kA at 277V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 100A/BQD, Length 4.5 in, Width 1 in, Depth 2.7 in, Max. Operating Temp. 104 Degrees F
