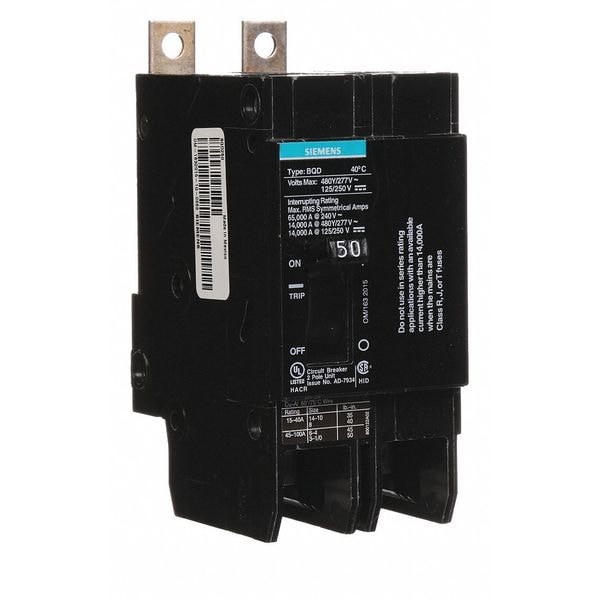

Miniature Circuit Breaker, BQD Series, 50A, 2 Pole, 480V AC, 14kA at 480V AC
Mfr # BQD250
Zoro # G2422296
product price:Â $429.99
/ea
Free Shipping & Returns
Key Features
Series
BQD
Number of Poles
2
AC Voltage Rating
480V AC
Circuit Breaker Type
Standard
Phase
1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BQD250
- Zoro #
- G2422296
- UPC #
- 783643277281
- Country of Origin
- Mexico
Dimensions
- Frame Size
- 100A/BQD
- Width
- 2 in
- Depth
- 2.70 in
- Height
- 4.49 in
- Max. Wire Size
- 1/0 AWG
- Min. Wire Size
- 6 AWG (Al), 8 AWG (Cu)
- Length
- 4.5 in
Details
- Item
- Miniature Circuit Breaker
- Series
- BQD
- Amps
- 50A
- Number of Poles
- 2
- AC Voltage Rating
- 480V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Bolt On
- Max. AIR Rating
- 14kA at 480V AC
- Terminal Connection
- Lugs
- DC Voltage Rating
- 125/250V DC
- Standards
- CSA-C22.2,UL 489
- For Use With
- Siemens P1 Panelboards
- Max. Operating Temp.
- 104 Degrees F
- Compatible Panelboard/Load Center Series
- P1
- Voltage
- 480VAC
Description
Miniature Circuit Breaker, Amps 50 A, AC Voltage Rating 480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Single, Series BQD, Max. AIR Rating 14kA at 480V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 100A/BQD, Length 4.5 in, Width 2 in, Depth 2.7 in, Max. Operating Temp. 104 Degrees F
