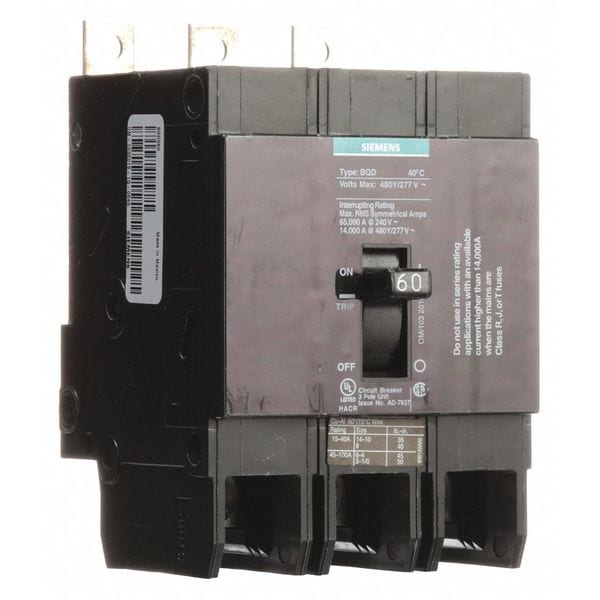

Miniature Circuit Breaker, BQD Series, 60A, 3 Pole, 480V AC, 14kA at 480V AC
Mfr # BQD360
Zoro # G0928672
CAD Available
product price: $569.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
BQD
Number of Poles
3
AC Voltage Rating
480V AC
Circuit Breaker Type
Standard
Phase
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BQD360
Zoro #
G0928672
UPC #
783643277427
Country of Origin
Mexico
Dimensions
Frame Size
100A/BQD
Width
3 in
Depth
2.70 in
Height
4.49 in
Min. Wire Size
6 AWG (Al), 8 AWG (Cu)
Max. Wire Size
1/0 AWG
Length
4.49 in
Details
Item
Miniature Circuit Breaker
Series
BQD
Amps
60A
Number of Poles
3
AC Voltage Rating
480V AC
Circuit Breaker Type
Standard
Phase
3
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On
Max. AIR Rating
14kA at 480V AC
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Standards
CSA-C22.2,UL 489
For Use With
Siemens P1 Panelboards
Compatible Panelboard/Load Center Series
P1
Voltage
480VAC
CAD Available
Yes
Description
Miniature Circuit Breaker, Amps 60 A, AC Voltage Rating 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Three, Series BQD, Max. AIR Rating 14kA at 480V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 100A/BQD, Length 4.49 in, Width 3 in, Depth 2.7 in, Max. Operating Temp. 104 Degrees F
