CAD Drawings
Download CAD Files

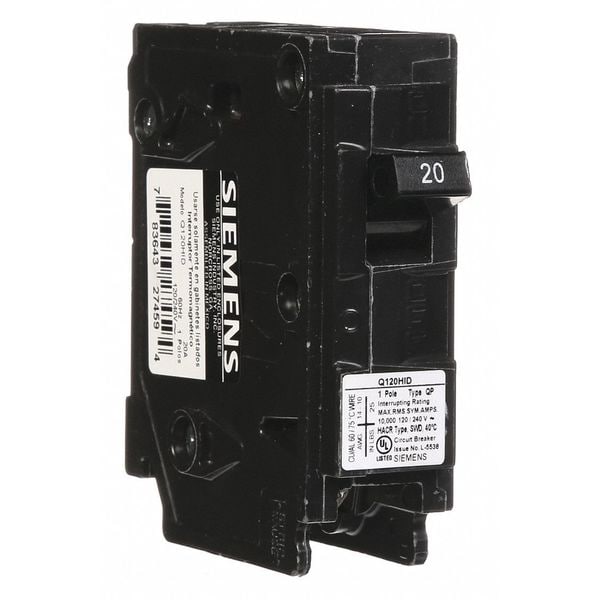

Miniature Circuit Breaker, Q Series, 20A, 1 Pole, 120V AC, 10kA at 120V AC
Mfr # Q120HID
Zoro # G3330704
CAD Available
product price:Â $31.19
/eaKey Features
CAD Drawing
Series
Q
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
High Interrupting
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Q120HID
Zoro #
G3330704
UPC #
783643274594
Country of Origin
Mexico
Dimensions
Frame Size
125A/QP
Width
3 in
Depth
1 in
Height
3 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Length
3 in
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120V AC, Circuit Breaker Type High Intensity Discharge, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series EQ, Phase Single, Series Q, Max. AIR Rating 10kA at 120V AC, For Use With Siemens EQ Load Centers, Terminal Connection Lug, Frame Size 125A/QP, Length 3 in, Width 3 in, Depth 1 in, Min. Wire Size 14 AWG, Max. Wire Size 8 AWG
