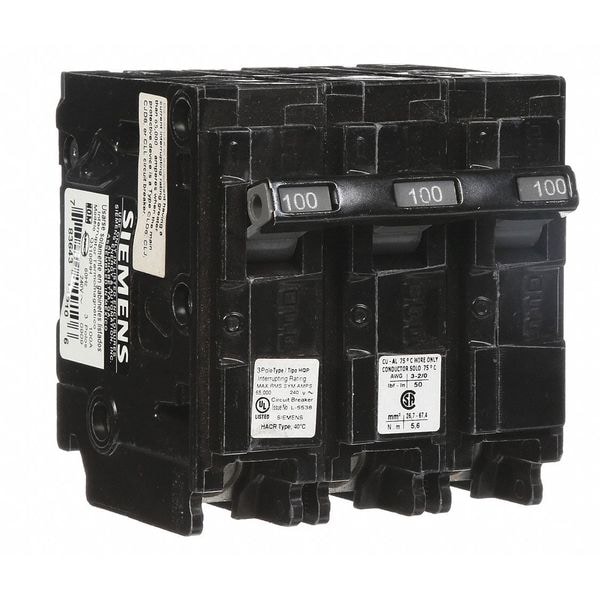

Miniature Circuit Breaker, QP Series, 100A, 3 Pole, 240V AC, 10kA at 120V AC
Mfr # Q3100
Zoro # G1013695
CAD Available
product price:Â $156.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
QP
Number of Poles
3
AC Voltage Rating
240V AC
Circuit Breaker Type
Standard
Phase
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Q3100
Zoro #
G1013695
UPC #
783643148475
Country of Origin
Mexico
Dimensions
Frame Size
125A/QP
Width
3 in
Depth
3 in
Height
2 in
Max. Wire Size
2 AWG
Min. Wire Size
8 AWG
Length
2 in
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series EQ, Phase Three, Series QP, Max. AIR Rating 10kA at 120V AC, For Use With Siemens EQ Load Centers, Terminal Connection Lug, Frame Size 125A/QP, Length 2 in, Width 3 in, Depth 3 in, Min. Wire Size 8 AWG, Max. Wire Size 2 AWG
