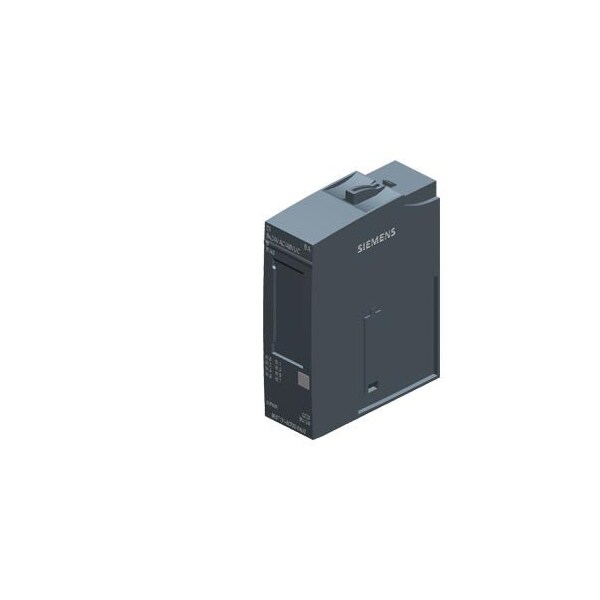

Siemens Module 6ES7131-6CF00-0AU0 - main

Module

  • Mfr # 6ES7131-6CF00-0AU0

  • Zoro # G409016715

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Height
73 millimetre
Depth
58 millimetre
Width
20 millimetre
Number of HW interfaces PROFINET
0
Number of HW interfaces serial RS232
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7131-6CF00-0AU0
Zoro #
G409016715
UPC #
-
Country of Origin
Germany

Dimensions

Height
73 millimetre
Depth
58 millimetre
Width
20 millimetre

Details

Number of HW interfaces PROFINET
0
Number of HW interfaces serial RS232
0
wall mounting/direct mounting possible
No
Number of outputs, digital
0
Corresponding operating medium (Ex ib)
No
Manufacturer product root
Digital module input
Input voltage, type
AC/DC
Power loss, static, current-independent [Pls]
2 watt
Field bus connection possible via separate bus couplers
Yes
max. supply voltage with AC 60 Hz
52.8 volt
Number of outputs
0
Bearing track assembly possible
Yes
min. supply voltage with AC 60 Hz
40.8 volt
System components present
Yes
Number of HW interfaces serial RS485
0
Number of HW interfaces Wireless
0
digital inputs, configurable
Yes
Number of HW interfaces parallel
0
Optical interface present
No
Number of HW interfaces serial TTY
0
Number of HW interfaces, other
0
Input current for state 1
4 milliampere
Number of inputs, digital
8
min. supply voltage with DC
41 volt
description of product type
DI 8x24VAC/48VUC BA
max. permissible voltage at input
58 volt
max. supply voltage with DC
57.6 volt
Rack-assembly possible
No
Supply voltage type
AC/DC
Number of HW interfaces serial RS422
0
Corresponding operating medium (Ex ia)
No
max. supply voltage with AC 50 Hz
52.8 volt
min. supply voltage with AC 50 Hz
40.8 volt
Number of inputs
8
Protection type IP
IP20
Front installation possible
No
Number of HW interfaces Industrial Ethernet
0
Manufacturer product family
ET 200SP

Description

SIMATIC ET 200SP, digital input , DI 8x 24 V AC..48 V UC Basic, packing quantity: 1 unit, suitable for BU type U0, color code CC20, diagnostics
