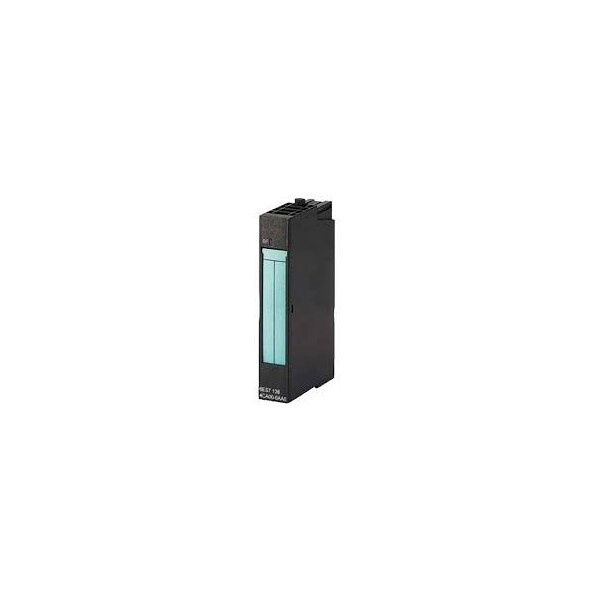

Siemens Module 6ES7132-6BD20-0DA0 - main

Module

  • Mfr # 6ES7132-6BD20-0DA0

  • Zoro # G209016878

product price: $437.99
/ea
Free Shipping & Returns

Key Features

Depth
58 millimetre
Height
73 millimetre
Width
15 millimetre
Field bus connection possible via separate bus couplers
Yes
Front installation possible
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7132-6BD20-0DA0
Zoro #
G209016878
UPC #
-
Country of Origin
Germany

Dimensions

Depth
58 millimetre
Height
73 millimetre
Width
15 millimetre

Details

Field bus connection possible via separate bus couplers
Yes
Front installation possible
No
min. permissible voltage at output
19 volt
Number of inputs, digital
0
Number of HW interfaces parallel
0
Number of HW interfaces, other
0
Corresponding operating medium (Ex ib)
No
Short circuit protection, outputs present
Yes
Design of digital output
Transistor
Number of HW interfaces Industrial Ethernet
0
Number of inputs
0
Output voltage type
DC
Number of HW interfaces Wireless
0
Optical interface present
No
Number of outputs
4
Corresponding operating medium (Ex ia)
No
Power loss, static, current-independent [Pls]
3 watt
Number of HW interfaces serial TTY
0
Protection type IP
IP20
Max. perm. voltage
29 volt
Number of HW interfaces PROFINET
0
digital outputs, configurable
Yes
description of product type
DQ 4x24 V DC/2 A HS
Supply voltage type
DC
wall mounting/direct mounting possible
No
Bearing track assembly possible
Yes
max. supply voltage with DC
28.8 volt
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces serial RS422
0
Number of outputs, digital
4
min. supply voltage with DC
19 volt
System components present
Yes
Output current
2 ampere
Max. delay time with change of signal
0 millisecond
Manufacturer product root
Digital module output
Manufacturer product family
ET 200SP
Number of HW interfaces serial RS485
0
Number of HW interfaces serial RS232
0
Min. delay time with change of signal
0 millisecond
Rack-assembly possible
No

Description

SIMATIC ET 200SP, digital output , DQ 4x 24 V DC/2A High Speed, Pack quantity: 1 unit suitable for BU type A0, Color code CC00, 3 alternative operating modes: DQ, Oversampling, PWM diagnostics
