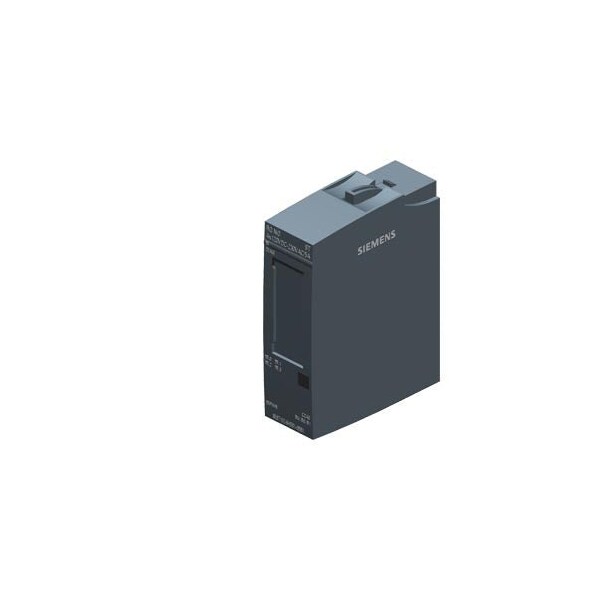

Siemens Module 6ES7132-6HD01-0BB1 - main

Module

  • Mfr # 6ES7132-6HD01-0BB1

  • Zoro # G009016580

product price: $171.99
/ea
Free Shipping & Returns

Key Features

Width
20 millimetre
Depth
58 millimetre
Height
73 millimetre
Supply voltage type
DC
Front installation possible
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7132-6HD01-0BB1
Zoro #
G009016580
UPC #
-
Country of Origin
Germany

Dimensions

Width
20 millimetre
Depth
58 millimetre
Height
73 millimetre

Details

Supply voltage type
DC
Front installation possible
No
Max. perm. voltage
264 volt
Number of HW interfaces serial TTY
0
Rack-assembly possible
No
Short circuit protection, outputs present
No
Number of inputs
0
Optical interface present
No
System components present
Yes
Number of HW interfaces serial RS232
0
wall mounting/direct mounting possible
No
Number of HW interfaces parallel
0
Manufacturer product root
Digital module output
Field bus connection possible via separate bus couplers
Yes
description of product type
RQ 4x120 VDC to 230 VAC/5 A NO ST
Number of HW interfaces serial RS422
0
Design of digital output
Relay
Corresponding operating medium (Ex ia)
No
Number of HW interfaces Wireless
0
Number of HW interfaces, other
0
digital outputs, configurable
Yes
Number of outputs, digital
4
Power loss, static, current-independent [Pls]
2 watt
min. supply voltage with DC
19 volt
Output voltage type
AC/DC
max. supply voltage with DC
28.8 volt
Manufacturer product family
ET 200SP
Number of HW interfaces Industrial Ethernet
0
Number of outputs
4
Protection type IP
IP20
Number of inputs, digital
0
Number of HW interfaces PROFINET
0
Bearing track assembly possible
Yes
min. permissible voltage at output
20 volt
Number of HW interfaces serial RS485
0
Corresponding operating medium (Ex ib)
No

Description

SIMATIC ET 200SP, Relay , RQ NO 4x 120V DC..230VAC/5A ST. 4 normally open contacts, isolated contacts, packing unit: 1 piece, fits to BU-type B0 and B1, Colour Code CC40, substitute value output, diagnostics for: supply voltage
