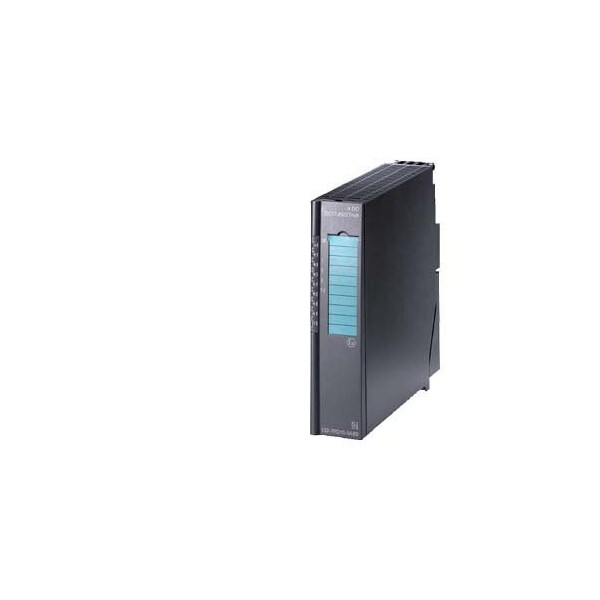

Siemens Module 6ES7132-7HB00-0AB0 - main

Module

  • Mfr # 6ES7132-7HB00-0AB0

  • Zoro # G909016635

product price: $660.99
/ea
Free Shipping & Returns

Key Features

Depth
137 millimetre
Width
30 millimetre
Height
129 millimetre
Corresponding operating medium (Ex ia)
No
Number of HW interfaces parallel
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7132-7HB00-0AB0
Zoro #
G909016635
UPC #
-
Country of Origin
Germany

Dimensions

Depth
137 millimetre
Width
30 millimetre
Height
129 millimetre

Details

Corresponding operating medium (Ex ia)
No
Number of HW interfaces parallel
0
Design of digital output
Relay
Number of inputs, digital
0
Number of outputs, digital
2
Corresponding operating medium (Ex ib)
No
Protection type IP
IP30
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 2
Number of HW interfaces, other
0
digital outputs, configurable
Yes
System components present
Yes
Field bus connection possible via separate bus couplers
Yes
Number of HW interfaces serial RS232
0
Number of HW interfaces PROFINET
0
Max. delay time with change of signal
3 millisecond
Design of electrical connection
Screw/spring connection
Power loss, static, current-independent [Pls]
1 watt
Manufacturer product root
Digital module output
Number of HW interfaces serial RS485
0
min. permissible voltage at output
0 volt
Number of HW interfaces Industrial Ethernet
0
Short circuit protection, outputs present
No
Max. perm. voltage
72 volt
Explosion protected category for dusts
ATEX dust-ex-protection, Cat. 2
Front installation possible
Yes
Output voltage type
AC/DC
Min. delay time with change of signal
8 millisecond
Output current
2 ampere
Supply voltage type
DC
Number of HW interfaces serial TTY
0
Number of HW interfaces serial RS422
0
Number of HW interfaces Wireless
0
description of product type
2DQ relay 60 V UC/2 A
Optical interface present
No
Number of inputs
0
Rack-assembly possible
No
Number of outputs
2
Functional safety (SIL)
Without
wall mounting/direct mounting possible
No
Manufacturer product family
ET 200iSP
Bearing track assembly possible
Yes

Description

SIMATIC DP, electronic for ET200iSP, 2DO relay UC60V / 2A, Ex eb ib mb IIC T4 Gb, Ex eb ib mb I Mb
