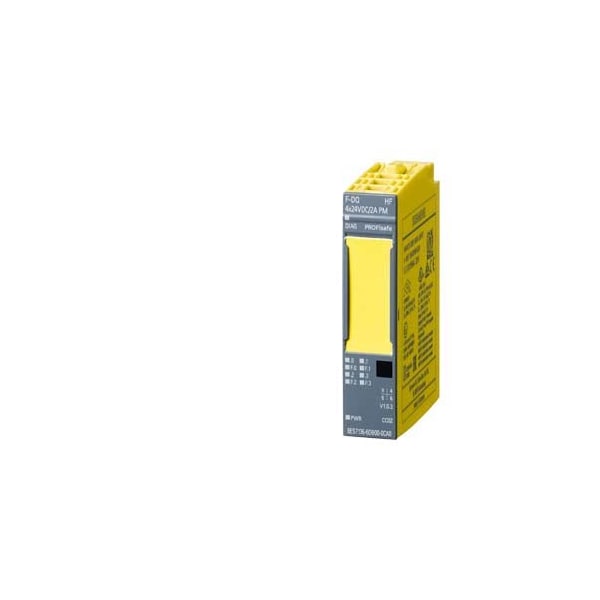

Siemens Module 6ES7136-6DB00-0CA0 - main

Module

  • Mfr # 6ES7136-6DB00-0CA0

  • Zoro # G209016236

product price: $566.99
/ea
Free Shipping & Returns

Key Features

Depth
58 millimetre
Width
15 millimetre
Height
73 millimetre
Number of outputs
4
Number of HW interfaces Industrial Ethernet
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7136-6DB00-0CA0
Zoro #
G209016236
UPC #
-
Country of Origin
Germany

Dimensions

Depth
58 millimetre
Width
15 millimetre
Height
73 millimetre

Details

Number of outputs
4
Number of HW interfaces Industrial Ethernet
0
Number of HW interfaces serial TTY
0
digital outputs, configurable
Yes
Output voltage type
DC
Bearing track assembly possible
Yes
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces serial RS485
0
Output current
2 ampere
Number of HW interfaces parallel
0
Number of inputs
0
Power loss, static, current-independent [Pls]
4 watt
Optical interface present
No
Number of HW interfaces, other
0
max. supply voltage with DC
28.8 volt
Number of outputs, digital
4
wall mounting/direct mounting possible
No
Corresponding operating medium (Ex ia)
No
Performance level acc. to EN ISO 13849-1
E
Manufacturer product family
ET 200SP
min. permissible voltage at output
19 volt
Short circuit protection, outputs present
Yes
Number of HW interfaces Wireless
0
Number of HW interfaces PROFINET
0
description of product type
F-DQ 4x24 V DC/2A HF
Number of HW interfaces serial RS422
0
Field bus connection possible via separate bus couplers
Yes
Protection type IP
IP20
Functional safety (SIL)
SIL 3
Rack-assembly possible
No
Supply voltage type
DC
Number of HW interfaces serial RS232
0
min. supply voltage with DC
20 volt
Number of inputs, digital
0
Corresponding operating medium (Ex ib)
No
System components present
Yes
Design of digital output
Transistor
Max. perm. voltage
29 volt
Manufacturer product root
Digital module output
Front installation possible
No

Description

SIMATIC DP, Electronics for ET 200SP, F-DQ 4X24 V DC/2A, 15 mm width, up to PL E ISO 13849 up to SIL 3 IEC 61508
