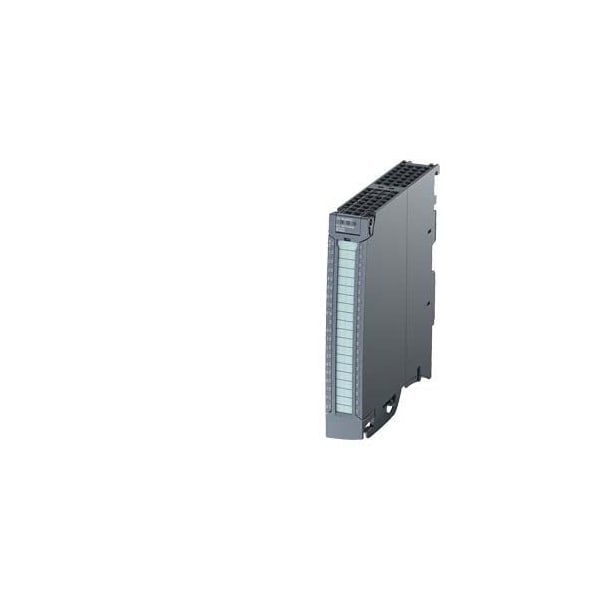

Siemens Module 6ES7522-1BH01-0AB0 - main

Module

  • Mfr # 6ES7522-1BH01-0AB0

  • Zoro # G409016593

product price: $576.99
/ea
Free Shipping & Returns

Key Features

Depth
129 millimetre
Width
35 millimetre
Height
147 millimetre
Design of digital output
Transistor
Redundancy-compatible present
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ES7522-1BH01-0AB0
Zoro #
G409016593
UPC #
-
Country of Origin
Germany

Dimensions

Depth
129 millimetre
Width
35 millimetre
Height
147 millimetre

Details

Design of digital output
Transistor
Redundancy-compatible present
Yes
Max. perm. voltage
29 volt
min. permissible voltage at output
0 volt
max. supply voltage with DC
28.8 volt
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Output current
1 ampere
Number of inputs
0
Max. delay time with change of signal
1 millisecond
Power loss, static, current-independent [Pls]
2 watt
digital outputs, configurable
Yes
Number of outputs
16
Manufacturer product family
S7-1500
Supply voltage type
DC
Manufacturer product root
Digital module output
Min. delay time with change of signal
0 millisecond
min. supply voltage with DC
19 volt
Short circuit protection, outputs present
Yes
Number of inputs, digital
0
description of product type
DQ 16x24VDC/0.5A HF
Output voltage type
DC
Number of outputs, digital
16
Corresponding operating medium (Ex ia)
No
Corresponding operating medium (Ex ib)
No

Description

SIMATIC S7-1500, digital output DQ16x24 V DC/0.5A HF, 16 channels in groups of 8, 4 A per group, single-channel diagnostics, substitute value: switching cycle counter for connected actuators. the supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector screw terminals or push-in to be ordered separately
