Module
Mfr # 6SL3210-1PB13-8UL0
Zoro # G309016136
product price: $577.99
/ea
Free Shipping & Returns
Key Features
Depth
165 millimetre
Height
196 millimetre
Width
73 millimetre
Use in the industrial area permissible
No
Input phase number
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PB13-8UL0
Zoro #
G309016136
UPC #
-
Country of Origin
Germany
Dimensions
Depth
165 millimetre
Height
196 millimetre
Width
73 millimetre
Details
Use in the industrial area permissible
No
Input phase number
1
max. mains voltage
240 volt
Relative symmetric mains frequency tolerance
5 percent
max. rated operating current Ie
9.6 ampere
max. output power with linear load and rated output voltage
1 kilowatt
Design of frequency changer
U converter
Brake chopper integrated
Yes
Relative symmetric mains voltage tolerance
10 percent
Power loss, static, current-independent [Pls]
12 watt
Output phases, number of
3
Rated output voltage
230 volt
Min. network voltage
200 volt
Rated output current
4.2 ampere
description of product type
PM240-2
Base load current at high overload
8.4 ampere
Base load current at low overload
9.6 ampere
max. output power with square load at rated output voltage
1 kilowatt
Protection type IP
IP20
Max. output frequency
550 hertz
Description

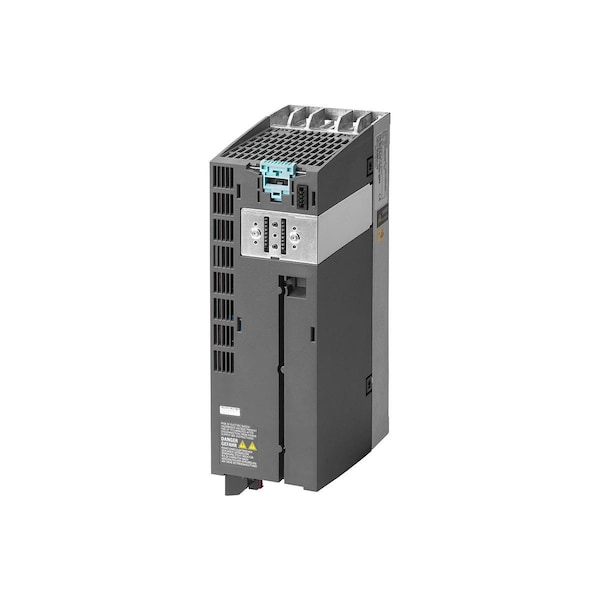

SINAMICS Power PM240-2 unfiltered with integrated braking chopper 200-240 V 1/3AC+10/-10% 47-63Hz Power high overload: 0.55kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware Version V4.6
