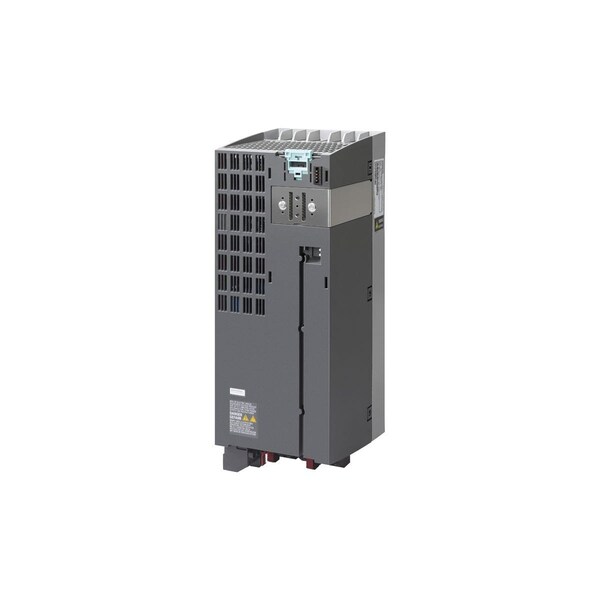

Module
Mfr # 6SL3210-1PE23-3AL0
Zoro # G509016844
product price: $3,915.99
/ea
Free Shipping & Returns
Key Features
Height
355 millimetre
Width
140 millimetre
Depth
165 millimetre
description of product type
PM240-2
Rated output current
32 ampere
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PE23-3AL0
Zoro #
G509016844
UPC #
-
Country of Origin
Germany
Dimensions
Height
355 millimetre
Width
140 millimetre
Depth
165 millimetre
Details
description of product type
PM240-2
Rated output current
32 ampere
Input phase number
3
Min. network voltage
380 volt
max. output power with square load at rated output voltage
15 kilowatt
Relative symmetric mains frequency tolerance
5 percent
max. output power with linear load and rated output voltage
11 kilowatt
Max. output frequency
550 hertz
Brake chopper integrated
Yes
Rated output voltage
400 volt
Protection type IP
IP20
Relative symmetric mains voltage tolerance
10 percent
Use in the industrial area permissible
Yes
Power loss, static, current-independent [Pls]
18 watt
max. mains voltage
480 volt
Design of frequency changer
U converter
Output phases, number of
3
Description
SINAMICS POWER PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 15KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 355 X 140 X 165 HXWXD, FSC PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
