Module
Mfr # 6SL3210-1PE31-1UL0
Zoro # G009016719
product price: $10,662.99
/ea
Free Shipping & Returns
Key Features
Depth
237 millimetre
Height
551 millimetre
Width
275 millimetre
Design of frequency changer
U converter
max. output power with square load at rated output voltage
55 kilowatt
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PE31-1UL0
Zoro #
G009016719
UPC #
-
Country of Origin
Germany
Dimensions
Depth
237 millimetre
Height
551 millimetre
Width
275 millimetre
Details
Design of frequency changer
U converter
max. output power with square load at rated output voltage
55 kilowatt
Power loss, static, current-independent [Pls]
32 watt
Max. output frequency
550 hertz
Relative symmetric mains frequency tolerance
5 percent
Input phase number
3
Rated output current
110 ampere
Protection type IP
IP20
Brake chopper integrated
Yes
Min. network voltage
380 volt
Relative symmetric mains voltage tolerance
10 percent
description of product type
PM240-2
Use in the industrial area permissible
No
Rated output voltage
400 volt
max. mains voltage
480 volt
max. output power with linear load and rated output voltage
45 kilowatt
Output phases, number of
3
Description

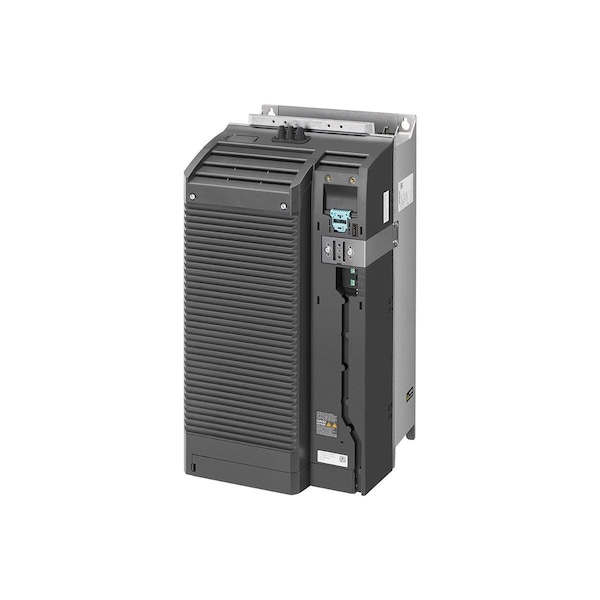

SINAMICS G120 POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 551 X 275 X 237 HXWXD, FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
