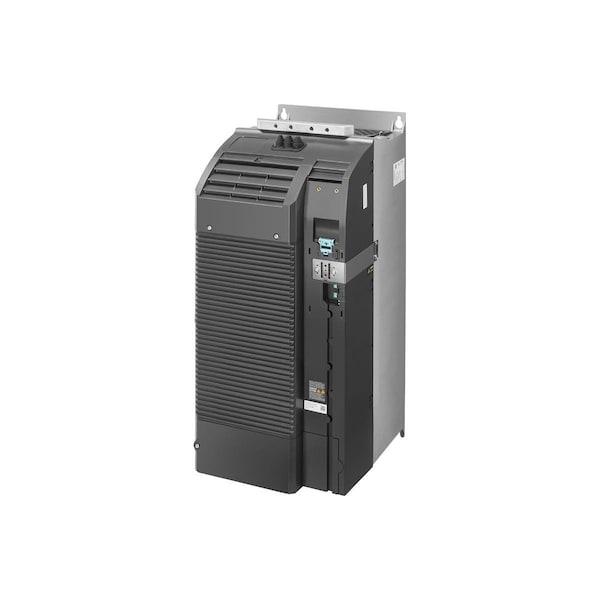

Module
Mfr # 6SL3210-1PE31-5UL0
Zoro # G409016418
product price: $11,602.99
/ea
Free Shipping & Returns
Key Features
Height
708 millimetre
Width
305 millimetre
Depth
357 millimetre
Power loss, static, current-independent [Pls]
48.1 watt
Relative symmetric mains voltage tolerance
10 percent
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PE31-5UL0
Zoro #
G409016418
UPC #
-
Country of Origin
Germany
Dimensions
Height
708 millimetre
Width
305 millimetre
Depth
357 millimetre
Details
Power loss, static, current-independent [Pls]
48.1 watt
Relative symmetric mains voltage tolerance
10 percent
Rated output current
145 ampere
Brake chopper integrated
Yes
Input phase number
3
max. mains voltage
480 volt
description of product type
PM240-2
Relative symmetric mains frequency tolerance
5 percent
Max. output frequency
550 hertz
Output phases, number of
3
Use in the industrial area permissible
No
Design of frequency changer
U converter
Rated output voltage
400 volt
max. output power with square load at rated output voltage
75 kilowatt
Min. network voltage
380 volt
Protection type IP
IP20
max. output power with linear load and rated output voltage
55 kilowatt
Description
SINAMICS G120 POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 75kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 708 X 305 X 357 HXWXD, FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
