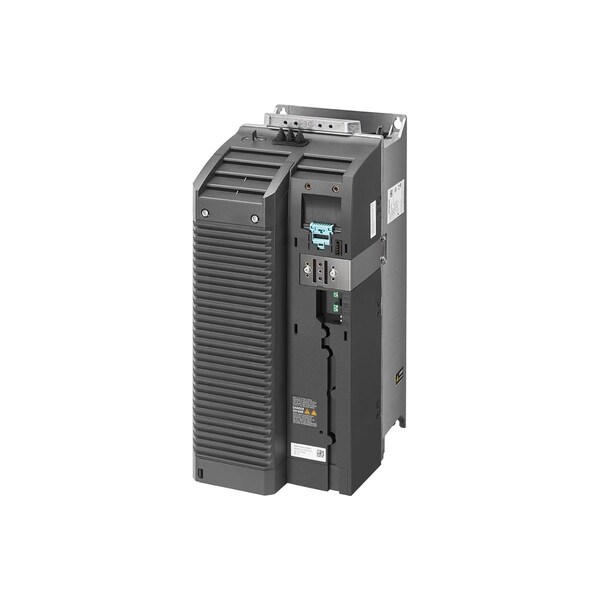

Module
Mfr # 6SL3210-1PH22-0AL0
Zoro # G509016424
product price: $4,300.99
/ea
Free Shipping & Returns
Key Features
Depth
237 millimetre
Height
472 millimetre
Width
200 millimetre
Power loss, static, current-independent [Pls]
31 watt
Max. output frequency
550 hertz
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6SL3210-1PH22-0AL0
Zoro #
G509016424
UPC #
-
Country of Origin
Germany
Dimensions
Depth
237 millimetre
Height
472 millimetre
Width
200 millimetre
Details
Power loss, static, current-independent [Pls]
31 watt
Max. output frequency
550 hertz
Brake chopper integrated
Yes
max. mains voltage
690 volt
Input phase number
3
Min. network voltage
500 volt
Design of frequency changer
U converter
Rated output voltage
690 volt
Rated output current
19 ampere
Relative symmetric mains voltage tolerance
10 percent
max. output power with linear load and rated output voltage
11 kilowatt
Use in the industrial area permissible
Yes
description of product type
PM240-2
Protection type IP
IP20
max. output power with square load at rated output voltage
15 kilowatt
Relative symmetric mains frequency tolerance
5 percent
Output phases, number of
3
Description
SINAMICS G120 POWER PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 11KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 15kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 472 X 200 X 237 HXWXD, FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
