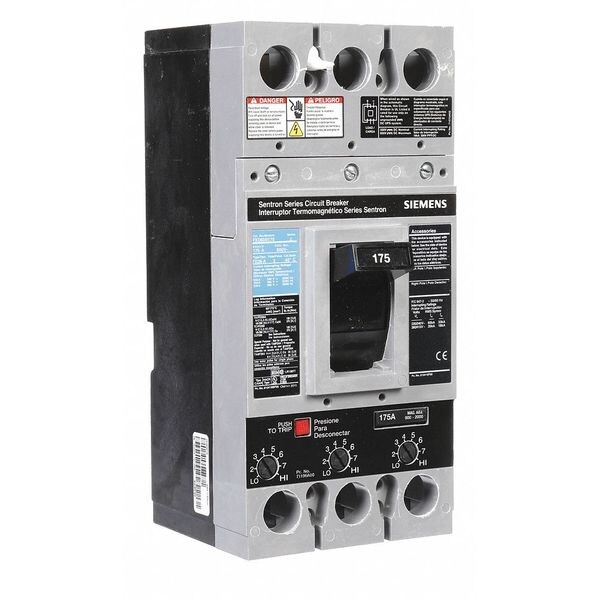

Molded Case Circuit Breaker, FXD6-A Series, 175A, 3 Pole, 600V AC, 22kA at 600V AC
Mfr # FXD63B175
Zoro # G0279605
product price:Â $3,832.99
/ea
Free Shipping & Returns
Key Features
Series
FXD6-A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Standard
Phase
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FXD63B175
- Zoro #
- G0279605
- UPC #
- 783643211261
- Country of Origin
- Mexico
Dimensions
- Frame Size
- 250A/FD
- Width
- 4-1/2 in
- Depth
- 4 in
- Height
- 9-1/2 in
Details
- Item
- Molded Case Circuit Breaker
- Series
- FXD6-A
- Amps
- 175A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Standard
- Phase
- 3
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Free Standing
- Max. AIR Rating
- 22kA at 600V AC
- Trip Type
- Thermal Magnetic
- Instantaneous Trip
- Fixed
- Terminal Connection
- Lugs
- Phase Connection
- ABC
- DC Voltage Rating
- 500V DC
- For Use With
- SB Switchboards Without Lugs, Sentron Panelboards
- High Amp Trip Setting
- 175 A
- Low Amp Trip Setting
- 175 A
- Standards
- UL Listed
Description
Molded Case Circuit Breaker, 175 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 22kA at 600V AC, For Use With SB Switchboards Without Lugs, Sentron Panelboards, Series FXD6-A, High Amp Trip Setting 175 A, Low Amp Trip Setting 175 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 500V DC, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 250A/FD, Circuit Breaker Mounting Style Free Standing
