  13. Multifunction Time Delay Relay, 15 Functions 240V AC, SPDT

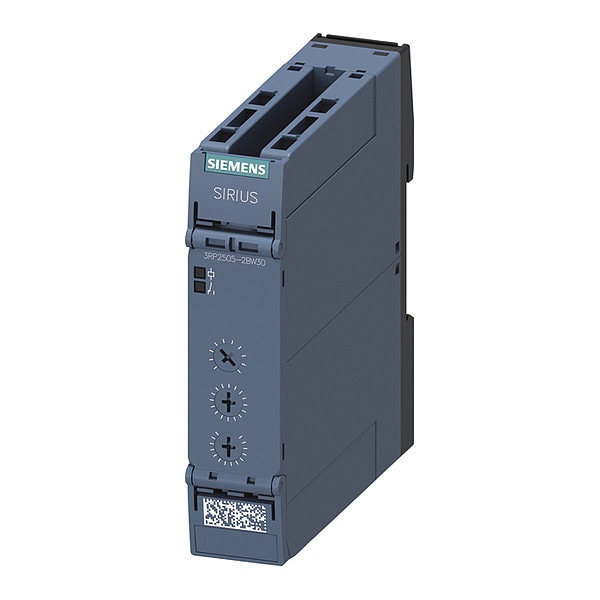

Siemens Multifunction Time Delay Relay, 15 Functions 240V AC, SPDT 3RP25052BW30 - main

Multifunction Time Delay Relay, 15 Functions 240V AC, SPDT

  • Mfr # 3RP25052BW30

  • Zoro # G2109331

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Delay Function
Flasher (Break or Pulse), Flasher (Break or Pulse/Instantaneous Contact), Off Delay, Off Delay (Instantaneous), On Delay, On Delay (Additive/Instantaneous), On Delay/Off Delay (Instantaneous), Passing (Break or Make Contact), Passing (Break or Make Contact/Instantaneous), Pulse (Delayed/Instantaneous), Pulse Delay, Pulse Shaping, Retriggerable (with Activated or Deactivated Control Signal), Retriggerable (with Activated or Deactivated Control Signal/Instantaneous), Star-Delta Circuit
Number of Delay Functions
15
Minimum Time Setting
0.05 sec
Maximum Time Setting
100 hr
Number of Pins
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3RP25052BW30
Zoro #
G2109331
UPC #
887621914899
Country of Origin
Germany

Dimensions

Overall Height - Relay
3.94 in
Body Depth
3.54 in
Overall Depth
3.94 in
Body Height
3.94 in
Body Width
0.89 in

Details

Item
Multifunction Time Delay Relay
Delay Function
Flasher (Break or Pulse), Flasher (Break or Pulse/Instantaneous Contact), Off Delay, Off Delay (Instantaneous), On Delay, On Delay (Additive/Instantaneous), On Delay/Off Delay (Instantaneous), Passing (Break or Make Contact), Passing (Break or Make Contact/Instantaneous), Pulse (Delayed/Instantaneous), Pulse Delay, Pulse Shaping, Retriggerable (with Activated or Deactivated Control Signal), Retriggerable (with Activated or Deactivated Control Signal/Instantaneous), Star-Delta Circuit
Number of Delay Functions
15
Minimum Time Setting
0.05 sec
Maximum Time Setting
100 hr
Number of Pins
10
Coil Voltage
240V AC
Current Rating
3 A
Contact Form
SPDT
Contact Rating (AC)
3 A @ 24/250/400V
Contact Rating (DC)
0.10 A @ 250V, 0.20 A @ 125V, 1.00 A @ 24V
Adjustment Method
Rotary Dip Switch
Electrical Connection
Spring Terminal
Status Indicator
LED
Contact Material
Silver Tin Oxide
Standards
CCC, CE Certified, CSA Certified, EAC, UL Listed
Contact Amp Rating (Resistive)
0.7A
Operating Functions
11
Coil Rating
3VA
Number of Functions
27
Input Voltage
12 to 240V AC/DC
Power Consumption
3 VA
Reset Method
Time-Limit Reset
Frequency
50/60 Hz
Mounting Style
DIN Rail

Description

Multi-Function Time Delay Relay, Adjustment Method Rotary Dip Switch, Coil Voltage 240V AC, Contact Form SPDT, Contact Rating (AC) 3 A @ 24/250/400V, Contact Rating (DC) 0.10 A @ 250V, 0.20 A @ 125V, 1.00 A @ 24V, Current Rating 3 A, Number of Delay Functions 15
