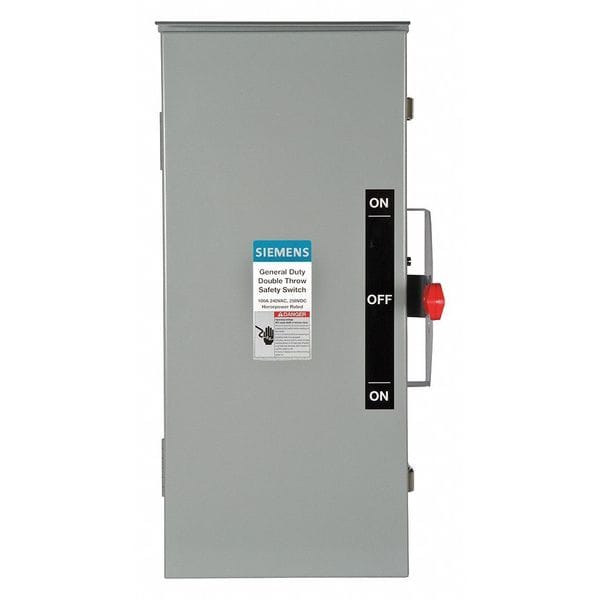

Nonfusible, Safety Switch, General Duty, 240 V, 3PST
Mfr # DTGNF323R
Zoro # G8653312
CAD Available
product price:Â $1,135.03
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
DTGNF323R
Zoro #
G8653312
UPC #
783643454040
Country of Origin
Mexico
Dimensions
Depth
8 1/2 in
Height
27 5/8 in
Width
14 1/4 in
Minimum Enclosure Depth
12.18 in
Maximum Mounting Depth
19.36 in
Maximum Enclosure Depth
27.62 in
Minimum Mounting Depth
8 in
Description
Safety Switch, Contact Form 3PDT, Current Rating 100 A, Depth 8 1/2 in, Duty Standard, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Not Applicable, Height 27 5/8 in, Horsepower @ 240V AC 40 hp, Housing Material Steel, IP Rating IP14, Maximum Enclosure Depth 27.62 in, Maximum Mounting Depth 19.36 in, Minimum Enclosure Depth 12.18 in, Minimum Mounting Depth 8 in, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Number of Mounting Holes 3
