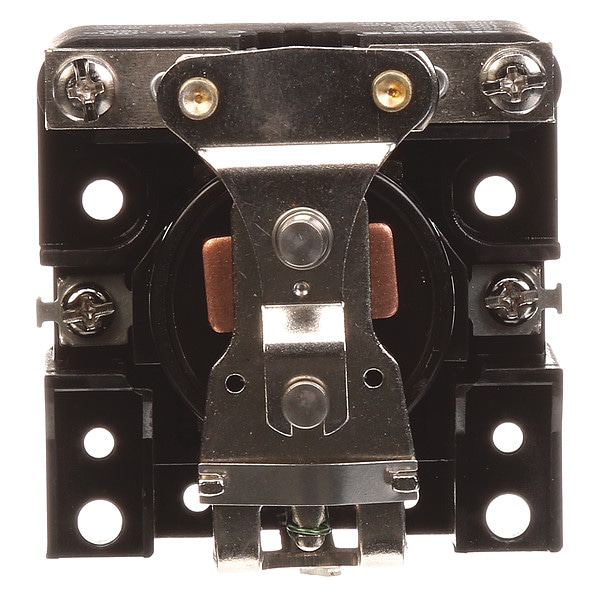

Open Power Relay, 120V AC, SPST-NO, Pins
Mfr # 3TX7130-0AF13
Zoro # G8523804
product price:Â $81.39
/eaKey Features
Mounting Style
Surface
Coil Voltage
120V AC
Current Rating
40 A
Contact Form
SPST-NO
Contact Rating (AC)
40 A @ 120V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3TX7130-0AF13
- Zoro #
- G8523804
- UPC #
- 754554762180
- Country of Origin
- China
Details
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 120V AC
- Current Rating
- 40 A
- Contact Form
- SPST-NO
- Contact Rating (AC)
- 40 A @ 120V
- Contact Material
- Silver Alloy
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Standards
- REACH Art. 33, RoHS Compliant
- Features
- Heavy Duty
- Mechanical Operating Durability
- 1,000,000
- Motor Rated
- Yes
- Minimum Operating Temperature
- -40 Degrees F
- Horsepower @ 120V AC
- 1/3 hp
- Maximum Operating Temperature
- 158 Degrees F
- Power Consumption
- 4 W, 10 VA
- Series
- 3TX71 Series
- Input Voltage
- 120V AC
- Weight
- 11.01 oz
- Maximum Switching Voltage
- 600V AC
- Response Time
- 30 msec
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Electrical Operating Durability
- 100,000
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 120V AC, Contact Form SPST-NO, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 120V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty, Input Voltage 120V AC
