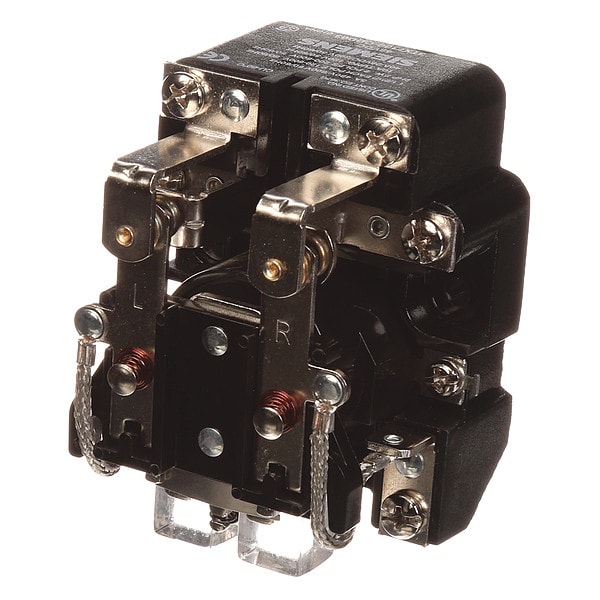

Open Power Relay, 48V DC, DPDT, Pins
Mfr # 3TX7130-0DD03
Zoro # G8524303
product price:Â
$
80.19
/ea
Key Features
Mounting Style
Surface
Coil Voltage
48V DC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (DC)
40 A @ 48V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3TX7130-0DD03
- Zoro #
- G8524303
- UPC #
- 754554775869
- Country of Origin
- China
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 48V DC
- Current Rating
- 40 A
- Contact Form
- DPDT
- Contact Rating (DC)
- 40 A @ 48V
- Contact Material
- Silver Alloy
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Features
- Heavy Duty Base
- Standards
- REACH Art. 33, RoHS Compliant
- Minimum Operating Temperature
- -40 Degrees F
- Mechanical Operating Durability
- 1,000,000
- Horsepower @ 120V AC
- 1/3 hp
- Power Consumption
- 4 W, 10 VA
- Motor Rated
- Yes
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Series
- 3TX71 Series
- Electrical Operating Durability
- 100,000
- Maximum Operating Temperature
- 158 Degrees F
- Maximum Switching Voltage
- 600V AC
- Weight
- 11.01 oz
- Response Time
- 30 msec
- Input Voltage
- 48V DC
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 48V DC, Contact Form DPDT, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (DC) 40 A @ 48V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 3.12 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty Base, Input Voltage 48V DC
