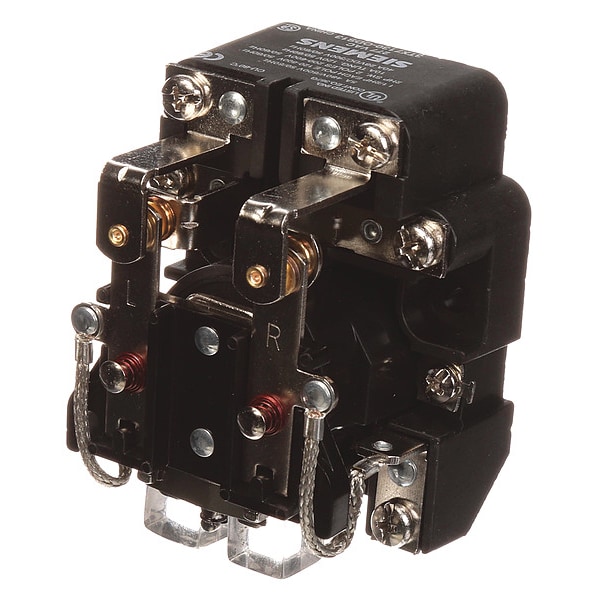

Open Power Relay, Socket Mounted, DPDT, 277V AC
Mfr # 3TX7130-0DS13
Zoro # G8523795
product price:Â
$
66.49
/ea
Key Features
Mounting Style
Surface
Coil Voltage
277V AC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
40 A @ 277V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3TX7130-0DS13
- Zoro #
- G8523795
- UPC #
- 754554762494
- Country of Origin
- China
- Item
- Open Power Relay
- Mounting Style
- Surface
- Coil Voltage
- 277V AC
- Current Rating
- 40 A
- Contact Form
- DPDT
- Contact Rating (AC)
- 40 A @ 277V
- Contact Material
- Silver Alloy
- Features
- Heavy Duty Base
- Power Consumption - Relay
- 4.0 W, 10.0 VA
- Standards
- REACH Art. 33, RoHS Compliant
- Motor Rated
- Yes
- Maximum Operating Temperature
- 158 Degrees F
- Electrical Operating Durability
- 100,000
- Dielectric Strength
- 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles
- Mechanical Operating Durability
- 1,000,000
- Series
- 3TX71 Series
- Power Consumption
- 4 W, 10 VA
- Weight
- 11.01 oz
- Horsepower @ 120V AC
- 1/3 hp
- Maximum Switching Voltage
- 600V AC
- Minimum Operating Temperature
- -40 Degrees F
- Input Voltage
- 277V AC
- Response Time
- 30 msec
- Status Indicator
- No Indicator
Description
Open Power Relay, Coil Voltage 277V AC, Contact Form DPDT, Current Rating 40 A, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 277V, Horsepower @ 120V AC 1/3 hp, Mounting Style Surface, Body Depth 3.12 in, Contact Material Silver Alloy, Dielectric Strength 1,500 Vrms Between Contacts, 2,200 Vrms Between Coil and Contact, 2,200 Vrms Between Poles, Electrical Operating Durability 100,000, Features Heavy Duty Base, Input Voltage 277V AC
