  11. Overload Relay, 1NC/1NO, 10 A Min current, 40 A Max current, 690V AC

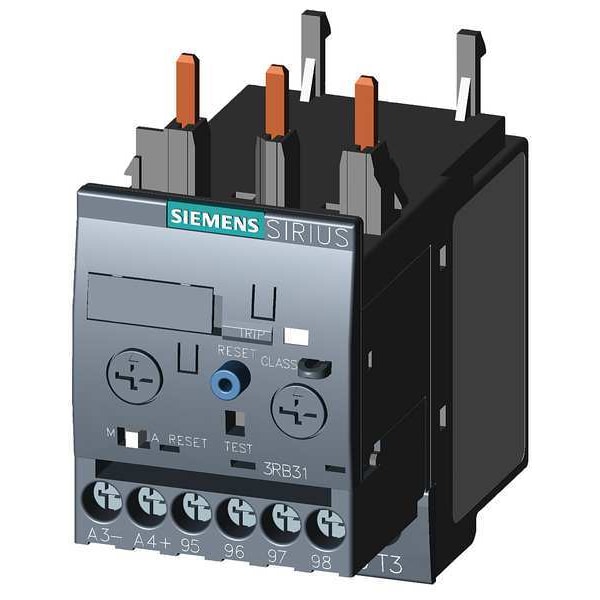

Siemens Overload Relay, 1NC/1NO, 10 A Min current, 40 A Max current, 690V AC 3RB31234VB0 - main

Overload Relay, 1NC/1NO, 10 A Min current, 40 A Max current, 690V AC

  • Mfr # 3RB31234VB0

  • Zoro # G4287001

product price: $313.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
10:00 AM
Maximum Overload Relay Current Setting
40 A
Trip Class
5E/10E/20E/30E
Frame Size
S0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RB31234VB0
Zoro #
G4287001
UPC #
662643903287
Country of Origin
Czechia

Dimensions

Frame Size
S0
Width
1.77
Height
3.42"
Overall Height - Relay
3.42 in
Depth
3.30
Body Height - Relay
3.42 in
Overall Height
6.13 in
Body Height
6.13 in

Details

Item
Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
10:00 AM
Maximum Overload Relay Current Setting
40 A
Trip Class
5E/10E/20E/30E
Overload Protection Type
Electronic
Maximum Voltage Rating
690V AC
Standards
Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Separate Mounting
Yes, Additional Items Needed
Frame / Series / Class / Code
S0
Features
Earth Fault Detection, Manual and Auto Reset
Trip Class - Overload
10, 20, 30, 5
Sensing Method
Electronic
Use With - Contactors and Starters
Mfr. Series 3RT202 Contactors
Number of Poles
3
For Use With
3RT202 Contactors
Starter Type
IEC
External reset possible
Yes
Number of auxiliary contacts as changer
0
Release class
adjustable
Greatest value adjustable current range
40 ampere
description of product type
3RB3
Lowest value adjustable current range
10 ampere
Power loss per pole, current-dependent [PlIp]
1 watt
Type of actuation
AC
Terminal Connection Type
Screw Terminals
Maximum Operating Temperature
140 Degrees F
Phase
Three
IP Rating
IP20
Minimum Operating Temperature
-13 Degrees F
Compatible with Series
SIRIUS
Relay Style
IEC
Reset Type
Auto, Manual
Mounting Style
Direct To Contactor
Trip Clss
5E/10E/20E/30E

Description

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 40 A, Minimum Overload Relay Current Setting 10 A, Trip Class 5E/10E/20E/30E, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S0, Relay Style IEC
