  15. Pilot Light Complete, Incand, 480V, 30mm, GR

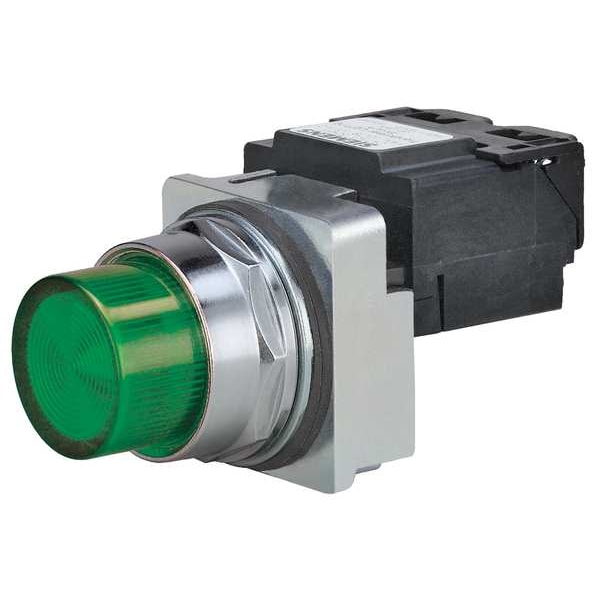

Siemens Pilot Light Complete, Incand, 480V, 30mm, GR 52PL4J3 - main

Pilot Light Complete, Incand, 480V, 30mm, GR

  • Mfr # 52PL4J3

  • Zoro # G0938131

product price: $119.99
/ea
Free Shipping & Returns

Key Features

Voltage
480V AC
Color
Green
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Terminal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52PL4J3
Zoro #
G0938131
UPC #
662643314601
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Width
1.7 in
Overall Height
1.7 in
Panel Cutout Diameter
30 mm
Overall Depth
3.49 in

Details

Item
Pilot Light
Voltage
480V AC
Color
Green
Lamp Type
Incandescent
Shape
Round
Terminal Connection
Screw Terminal
Lens Material
Plastic
Lens Type
Concentric Rings
Lamp Module Type
Transformer
Basic Material
Metal
Replacement Lamps
4VCW2
Body Material
Metal
Lamp Voltage
6V AC/DC
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
IP Rating
IP20, IP66
Includes
Lamp Module
Standards
CSA, UL Listed
Voltage Rating - Maximum
480 V AC
Body Finish
Chrome Plated
Includes Push-To-Test
No Push-To-Test Included
Lens Color
Green
Resistance Properties
Surge Voltage Resistant, Vibration Resistant
Includes Lamp Module
Lamp Module Included
Lamp Voltage - Maximum
480 V AC
Lamp Color
Green
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Series
Class 52
Includes Lens
Lens Included

Description

Pilot Light, Voltage 480V AC, Color Green, Lamp Type Incandescent, Shape Round, Terminal Connection Screw Terminal, Lens Material Plastic, 30 mm, Lamp Module Type Transformer, Basic Material Metal, Lens Type Concentric Rings, Lamp Voltage 6V AC/DC, Replacement Lamps 4VCW2, Body Material Metal, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Includes Lamp Module, Standards CSA, UL Listed
