CAD Viewer & Download Files

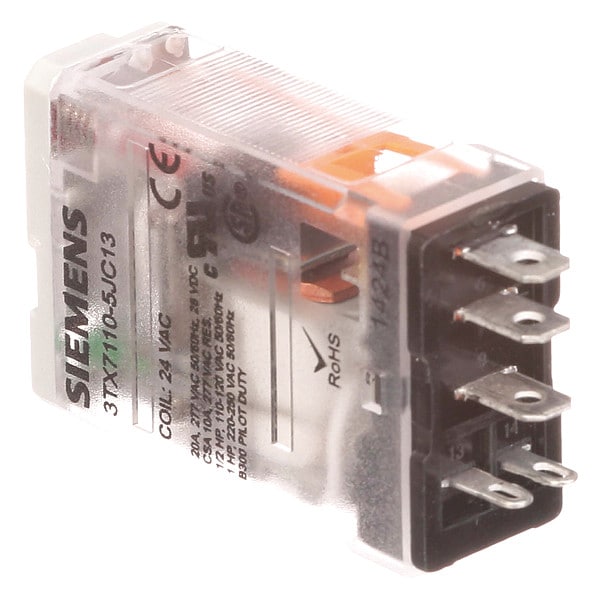

Plug-In, Plug-In Relay, Square, 15 A, 5 Pins
Mfr # 3TX7110-5JF13
Zoro # G8367117
CAD Available
product price: $28.99
/eaKey Features
CAD Drawing
Mounting Style
Plug-In
Base Shape
Square
Number of Pins
5
Coil Voltage
120V AC
Current Rating
15 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3TX7110-5JF13
Zoro #
G8367117
UPC #
754554759845
Country of Origin
China
Dimensions
Overall Height - Relay
1.77 in
Overall Depth
1.77 in
Body Height
1.4 in
Body Depth
1.06 in
Body Width
0.55 in
Description
Plug-In Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 15 A, Number of Pins 5, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Plug-In, Body Depth 1.06 in, Body Height 1.4 in, Body Width 0.55 in, Compatible with Manufacturer Model Number 3TX7144-4E7, Contact Material Silver Alloy, Features Degree of Protection IP40, Shock Resistance 10gn, For Use With Sockets
