Shop SIEMENS

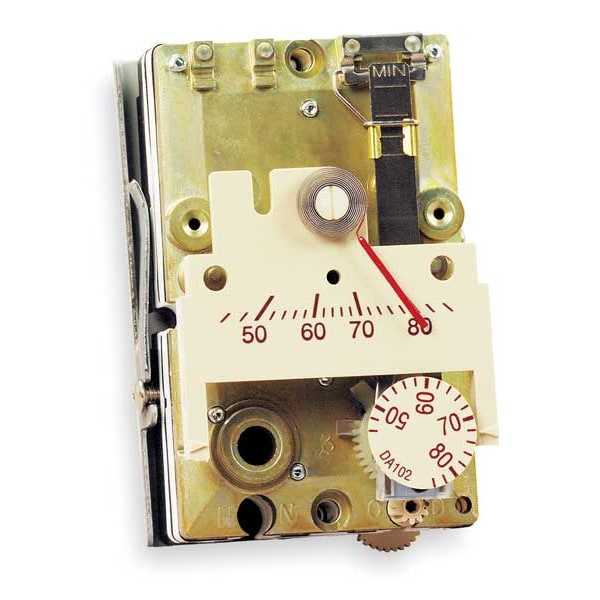

Pneumatic Thermostat Conversion Kit, Dual Temperature, Heating and Cooling, 2 Pipe, Vertical

  • Mfr # 194-3083
  • Zoro # G3287487
product price:
$
236.66
/ea
Free Shipping & Returns

Key Features

Action Type - Pneumatic Thermostats
Direct Acting and Reverse Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating and Cooling
Temperature Output Settings
Dual Temperature
Control Air Pressure
15 to 30 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
194-3083
Zoro #
G3287487
UPC #
094701540354
Country of Origin
United States

Dimensions

Height
3 3/8 in
Width
2 1/8 in
Depth
1 5/8 in
Air Connection Outside Diameter
3/16 in

Details

Item
Pneumatic Thermostat Conversion Kit
Action Type - Pneumatic Thermostats
Direct Acting and Reverse Acting
No. of Pipes
2 Pipe
Thermostat Application
Heating and Cooling
Temperature Output Settings
Dual Temperature
Control Air Pressure
15 to 30 psi
Air Connections
5/32 in Barb
Temp. Control Range
45 Degrees to 85 Degrees F
Max. Ambient Temp.
140 Degrees F
1 Pipe / 2 Pipe
2 Pipe
Throttling Range
3 to 15 psi
Reverse Acting / Direct Acting
Direct Acting and Reverse Acting
Single Temp. / Dual Temp.
Dual Temperature
Includes
Adapter Frame, Bag Assembly With Installation Hardware, 1/2 in Large Exposed Setpoint Knob, Retrostat Cover Kit, Bag Assembly
Element Type
Bi-Metal
Air Consumption
20 scfm
Heating / Cooling
Heating and Cooling
Max. Air Pressure
30 psi
Mounting Style
Vertical
Application
Heat and Cool
Control Type
Exposed Setpoint Knob
Action Type
Direct Acting and Reverse Acting
Number of Pipes
2
Replaces Brand/Manufacturer Model Number
Johnson Controls
Air Flow Output
High Volume
Pneumatic Thermostat Type
Heating and Cooling
Maximum Control Temperature
85 Degrees F
Action
Direct and Reverse
Maximum Air Pressure
30 psi
Temperature Settings
Dual Temperature
Setpoint Adjustment (Access)
Exposed
Mounting Direction
Vertical
Factory Setpoint Range
72 Degrees F
Differential Type
Adjustable
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Replaces Manufacturer Model Number
T-4756 Series
Mounting Direction/Cover Color
Vertical/Beige
Temperature Scale
Celsius/Fahrenheit
Thermostat Action
Direct and Reverse
Minimum Control Temperature
45 Degrees F
Replaces Brand
Johnson Controls
Cover Color
Beige
Manufacturer Model Number
194-3083
Thermostat Action/Application
Direct and Reverse/Heat and Cool

Description

Pneumatic Thermostat, D/A Heating R/A Cooling, Temp Setting Range 45 to 85 F, Factory Preset 7.5 PSI, Sensitivity 2.5 PSI/ F, Throttling Range 2.5 F, Max Safe Air 30 PSI, Max Safe Operating Temp 140 F, Height 3-3/8 In, Width 2-1/8 In, Depth 1-5/8 In, Max Supply Pressure 30 PSIG, Min Pressure 18 PSIG, Max Safe Storage Temp 140 F, BiMetal Sensing Element, Adjustable Setpoint, Converts Competitive Models To Powerstar 192, 2 Pipe, Single or Dual Set Point, Includes Mounting Plate
