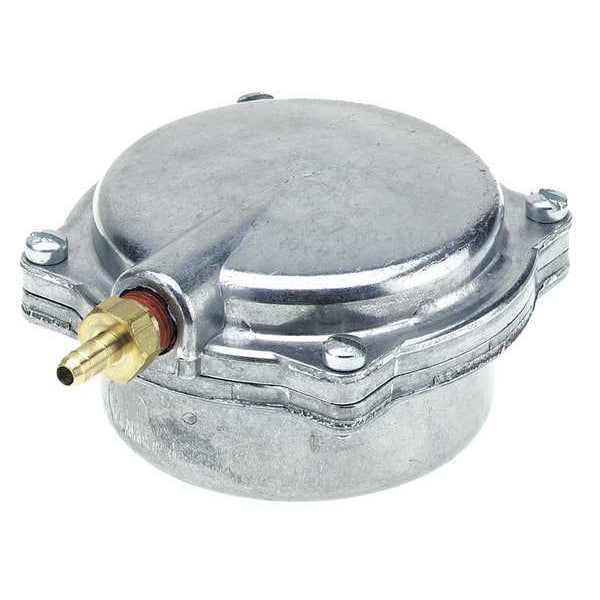

Pneumatic Valve Actuator, 10 to 15 Spring
- Mfr # 599-01088
- Zoro # G8492032
product price:Â
$
78.55
/ea
Key Features
Operating PSI Range
10 to 15, 3 to 8, 8 to 13
Max. Air Pressure
35 psi
Stroke
7/32 in
Nominal Spring Range
8 to 13 psi
Mounting Type
Direct Coupled
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 599-01088
- Zoro #
- G8492032
- UPC #
- -
- Country of Origin
- United States
- Item
- Pneumatic Valve Actuator
- Operating PSI Range
- 10 to 15, 3 to 8, 8 to 13
- Max. Air Pressure
- 35 psi
- Stroke
- 7/32 in
- Nominal Spring Range
- 8 to 13 psi
- Mounting Type
- Direct Coupled
- Net Force Exerted @ 0 PSI
- 35 lb
- Provides
- Pneumatic Proportional Control
- For Use With
- 1/2 in to 1 in Powermite MT Series Terminal Unit Valves
- Application
- Terminal Unit Valves
- Includes Mounting Kit
- Valve Mounting Kit Included
- Manufacturer Series
- MT
- Housing Material
- Aluminum
- Operating Temperature - Maximum
- 120 Degrees F
- Installation Orientation
- Horizontal, Vertical
- Diaphragm Material
- Silicone
- Control Pressure - Maximum
- 13 psi
- Spring Range Maximum
- 13 psi
- Air Connection Type
- NPT
- Operating Temperature - Minimum
- 35 Degrees F
- Spring Range Minimum
- 8 psi
- Mounting Style
- Direct Coupled
Description
Pneumatic Valve Actuator, Air Connection Size 1/8 in, Air Connection Type NPT, Application Terminal Unit Valves, Compatible Valve Size 2 in, Control Pressure - Maximum 13 psi, Diaphragm Material Silicone, Housing Material Aluminum, Includes Mounting Kit Valve Mounting Kit Included, Installation Orientation Horizontal, Vertical, Manufacturer Series MT, Mounting Style Direct Coupled, Operating Temperature - Maximum 120 Degrees F, Operating Temperature - Minimum 35 Degrees F, Overall Depth 1 3/4 in
