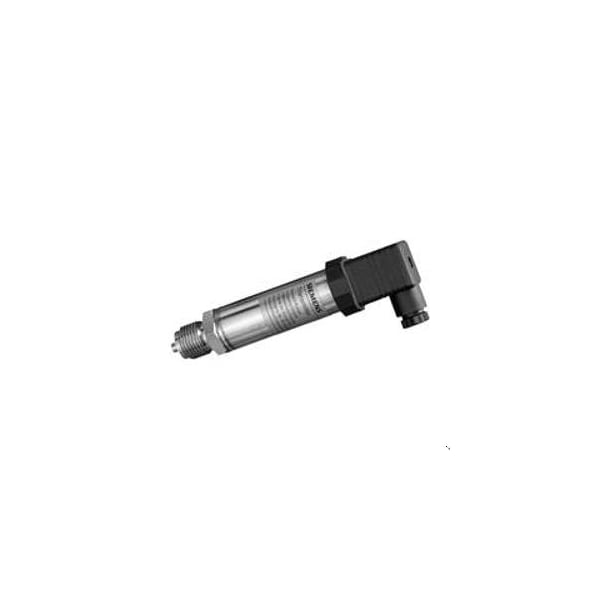

Pressure Transmitter, 150 psi

  • Mfr # 7MF15654CA005EA1

  • Zoro # G710044032

product price:
$
317.99
/ea
Free Shipping & Returns

Key Features

Features
Compact Design, For Aggressive and Non-Aggressive Media, High Measuring Accuracy, Temperature-Compensated Measuring Cell
Input Voltage
10 to 36V DC
Standards
ABS_11_HG 789392_PDA, ACS 15 ACC NY 360, BV 271007A0 BV, Det Norske Veritas (DNV) A 12553, GL19740 11 HH00, IEC 60770-2, IEC UL DK 21845, Lloyd's Register of Shipping (LR) 12/20010, Pressure Equipment Directive (PED 2014/68/EU), UL 20110217 - E34453
NEMA Rating
IP65
Response Time
0.1 sec
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
7MF15654CA005EA1
Zoro #
G710044032
UPC #
-
Country of Origin
Switzerland
Item
Pressure Transmitter
Features
Compact Design, For Aggressive and Non-Aggressive Media, High Measuring Accuracy, Temperature-Compensated Measuring Cell
Input Voltage
10 to 36V DC
Standards
ABS_11_HG 789392_PDA, ACS 15 ACC NY 360, BV 271007A0 BV, Det Norske Veritas (DNV) A 12553, GL19740 11 HH00, IEC 60770-2, IEC UL DK 21845, Lloyd's Register of Shipping (LR) 12/20010, Pressure Equipment Directive (PED 2014/68/EU), UL 20110217 - E34453
NEMA Rating
IP65
Response Time
0.1 sec
Process Connection Gender
Male
Minimum Operating Temperature
-13 Degrees F
IP Rating
IP65
Explosion/Fire Proof
No
Type of Pressure
Gauge
Intrinsically Safe
No
Power Required
10 to 36V DC
Pressure Units
psig
Burst Pressure
350 psi
Safety Rating
DRGL 97/23/EC, Group 1
Minimum Pressure
0 psi
Maximum Pressure
150 psi
Series
7MF15654
Calibration Certificate Included
No
Maximum Operating Temperature
185 Degrees F
Storage Temperature Range
-58 Degrees F to 212 Degrees F
Weight
0.55 lb
Output
4 to 20mA DC
Accuracy
+/-0.25% of Full Scale
Housing Material
Stainless Steel
Electrical Connections
Screw Terminals
Number of Wires
2
Process Connection Type
NPT
For Use With Media Type
Aggressive Media, Gases, Liquid, Non-Aggressive Media, Vapor
Fitting Material
Stainless Steel
Wiring Entry
1/2 in FNPT Conduit Connection
Overpressure
150 psi
Pressure Measurement - Maximum
150 psi
Output Power
4 to 20mA DC
Process Media Temperature - Minimum
-13 Degrees F
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Process Media Temperature - Maximum
185 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement - Minimum
0 psi
Electrical Connection
Screw Terminals
Pressure Type Measured
Gauge

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 150 psi, Electrical Connections Screw Terminals, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 36V DC, NEMA Rating IP65, IP Rating IP65, Series 7MF15654, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -13 Degrees F
