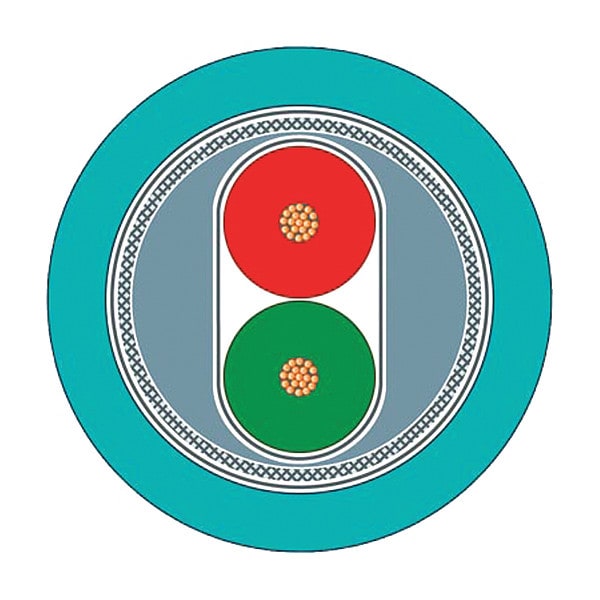

Siemens PROFIBUS FC Trailing Cable, PROFIBUS tra 6XV18303EH10 - main

PROFIBUS FC Trailing Cable, PROFIBUS tra

  • Mfr # 6XV18303EH10

  • Zoro # G8359523

product price: $13.59
/ea
Sold in multiples of 20 for $271.80

Key Features

Standards
RoHS Compliant
Bend Radius
60 mm
Jacket Material - Wire and Cable
Thermoplastic Polyurethane
Shielded
Shielded
Jacket Material
PU
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6XV18303EH10
Zoro #
G8359523
UPC #
662643228755
Country of Origin
Germany

Dimensions

Bend Radius
60 mm
Outer diameter of the cable
8 millimetre
Diameter of conductor
0.67 millimetre
Outside Diameter
0.3 in

Details

Item
Trailing Cable
Standards
RoHS Compliant
Jacket Material - Wire and Cable
Thermoplastic Polyurethane
Shielded
Shielded
Jacket Material
PU
Shielding Material
Aluminum-Clad Foil
Insulation Material
PE
Application
Communications
Jacket Color
Teal
Solid / Stranded
Stranded
Flame resistant according to standard
According to IEC 60332-1-2
Number of wires
2
Max. perm. surface temperature with stationary lines
60 degree_Celsius
Min. perm. surface temperature with stationary lines
-40 degree_Celsius
Material of the mantle
PUR (polyurethane)
description of product type
PROFIBUS FC Trailing Cable
RoHS attention of conformity
1
Construction of the cabled element
Two wire
min. ambient temperature during operating phase
-40 degree_Celsius
Marking of conductors
Color
Design of shield over cabling
Film + fabric
Min. perm. surface temperature with open (not stationary) lines
60 degree_Celsius
Color of coat
petrol
max. ambient temperature during operating phase
60 degree_Celsius
max. traction stress
100 newton
Class of conductor
Kl.5 = fine-wire
Material of the wire insulation
PE
Max. perm. surface temperature with open (not stationary) lines
-40 degree_Celsius
USP information
FastConnect,PB FC Trailing Cable,Trailing Cable,cable cross
design of shield
Overlapped aluminum-clad foil, sheathed in a braided screen
Maximum Impedance
270 ohm
Maximum Voltage Rating
80 V
Minimum Operating Temperature
-40 Degrees F
Conductor Gauge
20 AWG
Solid/Stranded
Stranded
Maximum Operating Temperature
140 Degrees F
Product Type
Communication Cable
Maximum Capacitance
28.0 pf/m
Resistance Properties
Flame/Fire Resistant

Description

Trailing Cable, Conductor Gauge 20 AWG, Insulation Material PE, Jacket Color Teal, Jacket Material PU, Shielded Shielded, Shielding Material Aluminum-Clad Foil, Solid/Stranded Stranded, Outside Diameter 0.3 in, Application Communications, Maximum Voltage Rating 80 V, Product Type Communication Cable, Standards RoHS Compliant, Bend Radius 60 mm, Maximum Capacitance 28.0 pf/m, Maximum Impedance 270 ohm, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -40 Degrees F
