  11. PROFIBUS torsion cable, to use in highly

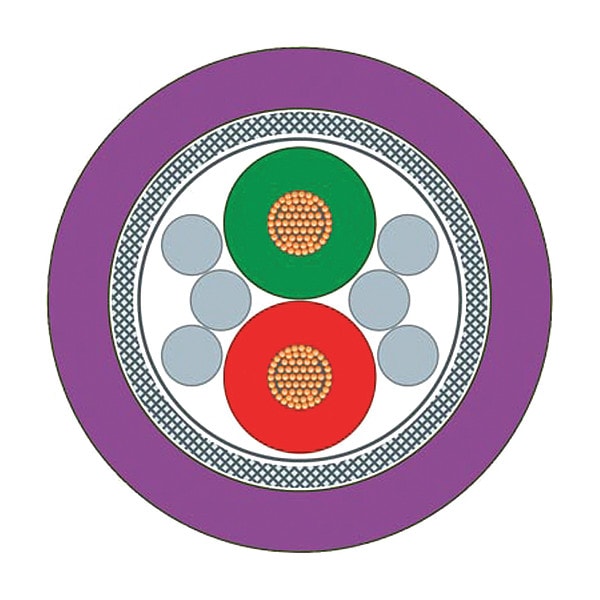

Siemens PROFIBUS torsion cable, to use in highly 6XV18300PH10 - main

PROFIBUS torsion cable, to use in highly

  • Mfr # 6XV18300PH10

  • Zoro # G8360923

product price: $12.49
/ea
Sold in multiples of 20 for $249.80

Key Features

Standards
RoHS Compliant
Bend Radius
30 mm
Insulation Material
PE
Application
Communications
Shielded
Shielded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6XV18300PH10
Zoro #
G8360923
UPC #
662643228335
Country of Origin
Germany

Dimensions

Bend Radius
30 mm
Diameter of conductor
0.8 millimetre
Outer diameter of the cable
8 millimetre
Outside Diameter
0.3 in

Details

Item
Torsion Cable
Standards
RoHS Compliant
Insulation Material
PE
Application
Communications
Shielded
Shielded
Shielding Material
Aluminum-Clad Foil
Jacket Material
PU
Jacket Color
Violet
Solid / Stranded
Stranded
Jacket Material - Wire and Cable
Thermoplastic Polyurethane
halogen free (according to EN 50267-2-2)
1
Max. perm. surface temperature with open (not stationary) lines
-40 degree_Celsius
Color of coat
violet
Material of the wire insulation
PE
design of shield
Overlapped aluminum-clad foil, sheathed in a braided screen
max. traction stress
100 newton
RoHS attention of conformity
1
Max. perm. surface temperature with stationary lines
75 degree_Celsius
Design of shield over cabling
Film + fabric
Class of conductor
Kl.5 = fine-wire
Material of the mantle
PUR (polyurethane)
Min. perm. surface temperature with stationary lines
-25 degree_Celsius
Number of wires
2
description of product type
PROFIBUS Torsion Cable
Flame resistant according to standard
According to IEC 60332-1-2
Construction of the cabled element
Two wire
Marking of conductors
Color
min. ambient temperature during operating phase
-25 degree_Celsius
max. ambient temperature during operating phase
75 degree_Celsius
Min. perm. surface temperature with open (not stationary) lines
80 degree_Celsius
Minimum Operating Temperature
-13 Degrees F
Maximum Voltage Rating
80 V
Maximum Capacitance
29.0 pf/m
Solid/Stranded
Stranded
Maximum Impedance
270 ohm
Resistance Properties
Flame/Fire Resistant
Conductor Gauge
20 AWG
Maximum Operating Temperature
167 Degrees F
Product Type
Continuous Flexing Appliance Wiring Communication Cable

Description

Torsion Cable, Conductor Gauge 20 AWG, Insulation Material PE, Jacket Color Violet, Jacket Material PU, Shielded Shielded, Shielding Material Aluminum-Clad Foil, Solid/Stranded Stranded, Outside Diameter 0.3 in, Application Communications, Maximum Voltage Rating 80 V, Product Type Continuous Flexing Appliance Wiring Communication Cable, Standards RoHS Compliant, Bend Radius 30 mm, Maximum Capacitance 29.0 pf/m, Maximum Impedance 270 ohm, Maximum Operating Temperature 167 Degrees F
